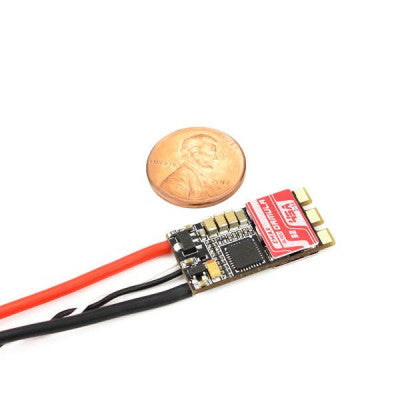

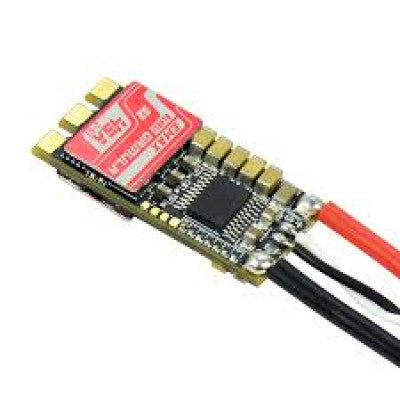

EMAX Formula Series 45A ESC
A lightweight and powerful ESC with BLHeli_32 firmware
- Brand Name: EMAX
- Model: Formula 45A ESC
- Firmware: BLHeli_32
- Input Voltage (V): 2-5S Lipo (18.5 V)
- Continue Current (A): 45
- Burst Current (A): 55
- BEC: No
- Calibration Protocol: DSHOT up to 1200
- Connecting Cable Length (cm): approx 10
- Length (mm): 28
- Width (mm): 13.7
- Height (mm): 5
- Weight (gm): 12
Features:
- Lightweight design
- BLHeli_32 firmware
This EMAX Formula Series 45A ESC is the new Formula32 ESC from EMAX, the first in a series of BLHELI32 specific ESCs. It is lightweight and small in width, providing 45 amps of power using DSHOT1200 for a smooth flight experience. Combined with F3-F7 Flight Controllers capable of 32K looping, the Formula32 delivers efficient and controlled power to high-speed racing drones.
Package Includes: 1 x EMAX Formula Series 45A ESC support BLHELI_32 ESC Dshot1200.
* Images are for illustration only; actual product may vary.
