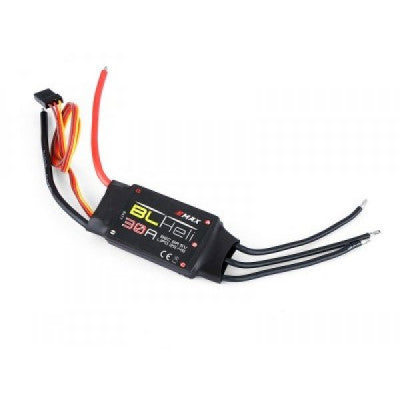

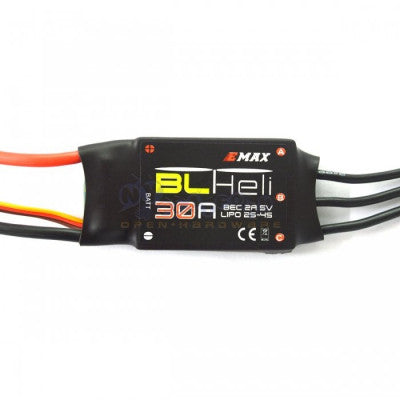

EMAX BLHELI SERIES 30A ESC
A brushless DC motor speed controller with enhanced power stability
- Model: Emax BLHeli Series 30A
- Burst Current (A): 40
- Constant Current (A): 30
- BEC: Yes (5V/2A)
- Suitable Lipo Batteries: 2 ~ 4S
- Color: Black
- Dimensions (mm) LxWxH: 52 x 26 x 7
- Weight (gm): 28
- Application: BLDC Motors, Multirotors, RC Planes, etc.
Features:
- BLHeli firmware optimized for perfect drive performance
- Low-voltage, over-heat, and throttle signal loss protection
- Separate power supply for MCU and BEC to eliminate magnetic interference
- Parameters can be set via program card or transmitter
The EMAX BLHELI ESC is programmed to start the brushless DC motor with a greater current handling capacity of 30A continuous and a peak current of 40A for the last 10 seconds only. The low output resistance greatly enhances power stability, improving battery life. Throttle range can be set to be compatible with different receivers. Equipped with built-in linear BEC or switch BEC, it has a max speed of 210,000 rpm for 2-pole, 70,000 rpm for 6-pole, and 35,000 rpm for 12-pole.
Package Includes:
- 1x Emax BLHeli Series 30A ESC with Oneshot (Original)
Images are for illustration only; actual product may vary.
