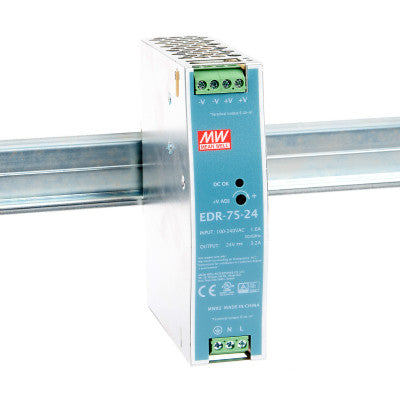

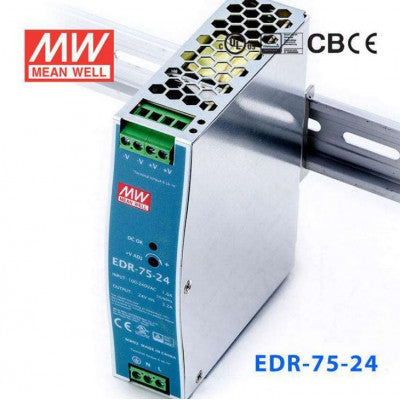

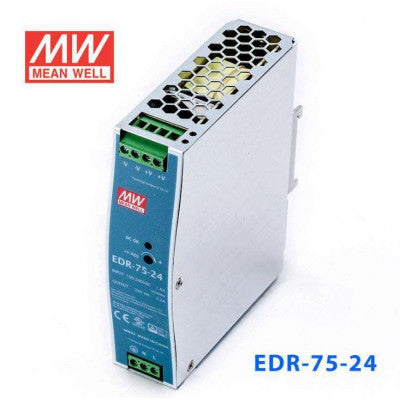

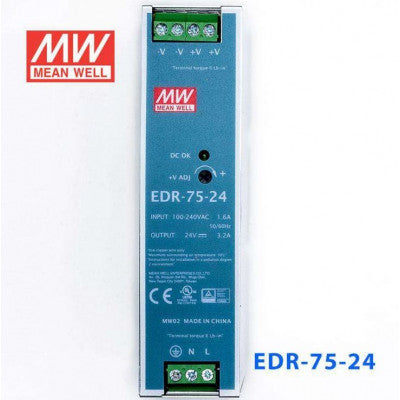

24V DIN Rail Type Power Supply
Reliable power supply with universal AC input and multiple protections
- Output Voltage: 24V
- Type: DIN Rail Type
- Approx. Wattage: 75W
- Features: Standard Series EDR(Economical)
- Mechanical Form: DIN Rail
- Warranty: 2 Years Warranty
- IP Level: Non-Waterproof
- Input Voltage: 100-240V auto-select
Top Features:
- Universal AC input
- Short circuit, overload, over voltage protections

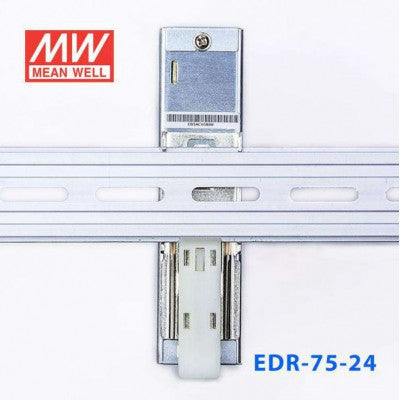

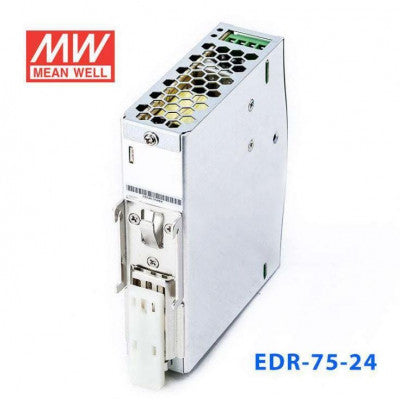

- Can be installed on DIN rail TS35/7.5 or 15
- Low cost with 2 years warranty
The 24V DIN Rail Type Power Supply has an AC input voltage range of 90~264VAC and 127~370VDC. It features DC adjustment ranges for different voltages and current adjustment ranges. The power supply also offers overload, over voltage, and over temperature protections for safe operation.
Withstand voltage levels ensure safety, and the power supply meets UL60950-1 and TUV EN60950-1 safety standards. It is suitable for industrial control equipment and has industrial immunity level certification.
- AC input voltage range: 90~264VAC; 127~370VDC
- AC inrush current (max.): Cold start, 35A at 230VAC
- DC adjustment range: 12V: 12~14V, 24V: 24~28V, 48V: 48~55V
- Current adjustment range: 10%~100% rated output current adjustable by 1~10Vdc, PWM signal or resistance
- Overload protection: 105%~130% Constant current limiting, auto-recovery
- Over voltage protection: 14V: 14~17V, 24V: 29~33V, 48V: 56~65V Shut down o/p voltage, re-power on to recover
- Over temperature protection: Shut down o/p voltage, re-power on to recover
- Withstand voltage: I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
- Working temperature: -20~+60°C (refer to output derating curve)
For more details, refer to the related documents: EDR-75 Datasheet, EDR-75-24 Test Report, CE Certificate (EDR-75), UL Certificate (EDR-75), TUV Certificate (EDR-75), EMC Certificate (EDR-75).
Images are for illustration only; actual product may vary.
