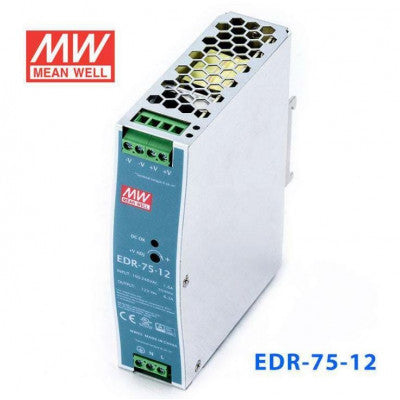

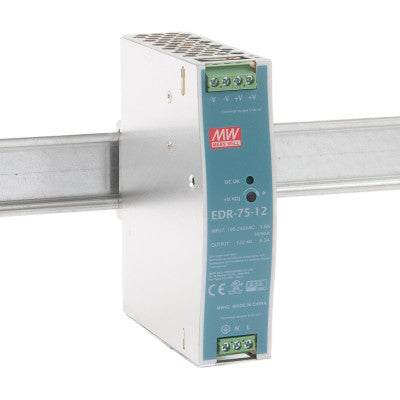

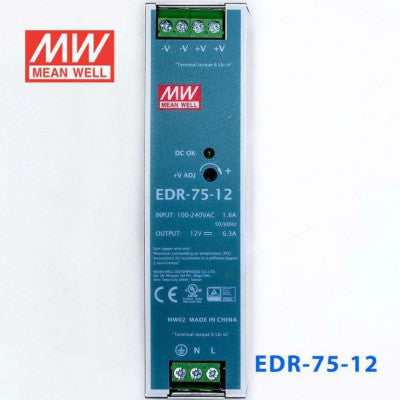

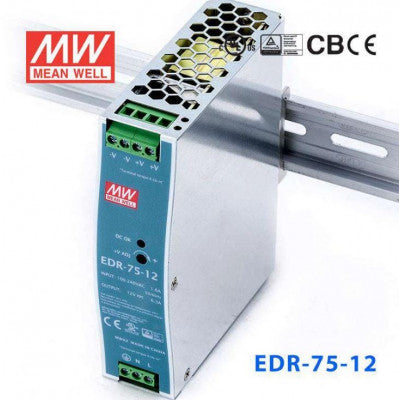

EDR-75 DIN Rail Type Power Supply
Reliable and efficient DIN rail type power supply with 75W output
- Output Voltage: 12V
- Type: DIN Rail Type
- Approx. Wattage: 75W
- Features: Standard Series EDR (Economical)
- Mechanical Form: DIN Rail
- Warranty: 2 Years Warranty
- IP Level: Non-Waterproof
- Input Voltage: 100-240V auto-select
Top Features:
- Universal AC input / Full range
- Short circuit / Overload / Over voltage / Over temperature protections
- Cooling by free air convection

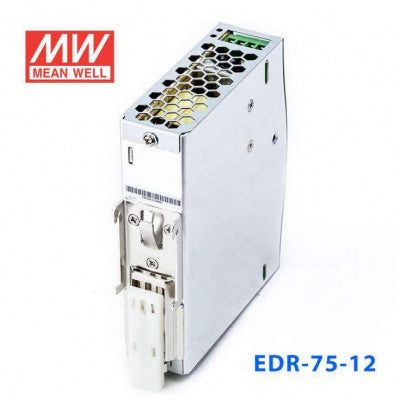

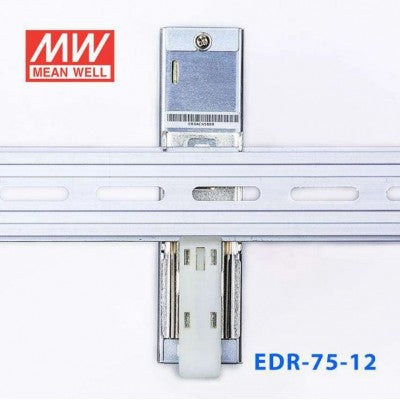

- Can be installed on DIN rail TS35 / 7.5 or 15
The EDR-75 DIN Rail Type Power Supply is designed for industrial control equipment with UL508 listing and EN61000-6-2 industrial immunity level. It undergoes a 100% full load burn-in test and comes with a low cost, backed by a 2-year warranty.
Specifications:
- AC input voltage range: 90~264VAC; 127~370VDC
- AC inrush current (max.): Cold start, 35A at 230VAC
- DC adjustment range: 12V: 12~14V, 24V: 24~28V, 48V: 48~55V
- Current adjustment range: 10%~100% rated output current adjustable by 1~10Vdc, PWM signal or resistance
- Overload protection: 105%~130% Constant current limiting, auto-recovery
- Over voltage protection: 14V: 14~17V, 24V: 29~33V, 48V: 56~65V Shut down o/p voltage, re-power on to recover
- Over temperature protection: Shut down o/p voltage, re-power on to recover
- Withstand voltage: I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
- Working temperature: -20~+60°C (refer to output derating curve)
- Safety standards: UL60950-1, TUV EN60950-1 approved
- EMC standards: EN55022 classA, EN61000-3-2(125W for EDR-150),3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2(EN50082-2)
- Connection (screw DIN terminal): I/P: 3 poles, O/P: 4 poles
- Dimension (LxWxH) (mm): 32x 125.2x 102
