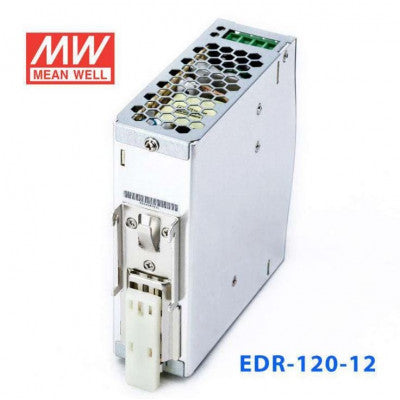

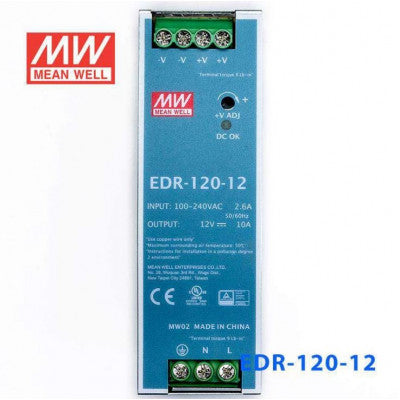

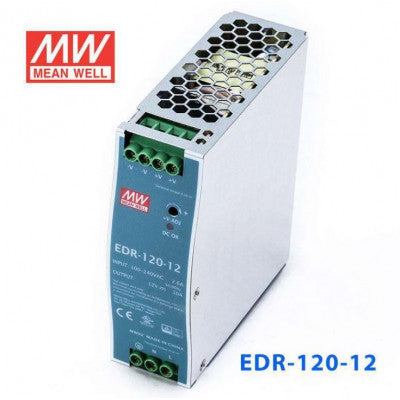

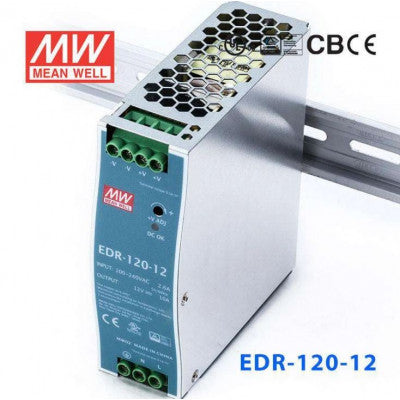

120W DIN Rail Type Power Supply
Reliable power supply with universal AC input and multiple protections
- Output Voltage: 12V
- Type: DIN Rail Type
- Approx. Wattage: 120W
- Features: Standard Series EDR (Economical)
- Mechanical Form: DIN Rail
- Warranty: 2 Years Warranty
- IP Level: Non-Waterproof
- Input Voltage: 100-240V auto-select
Top Features:
- Universal AC input
- Short circuit, overload, over voltage, and over temperature protections
- Cooling by free air convection

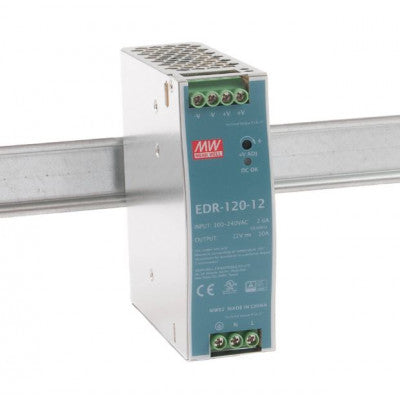

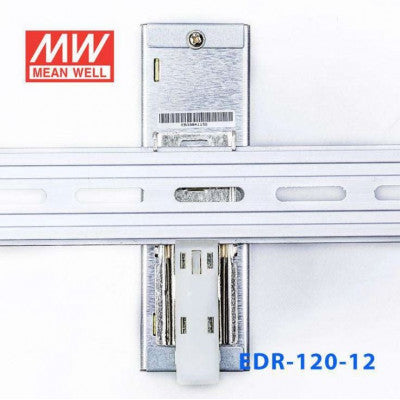

- Can be installed on DIN rail TS35/7.5 or 15
The 120W DIN Rail Type Power Supply offers a wide AC input voltage range of 90~264VAC and 127~370VDC. It features overload protection, over voltage protection, and over temperature protection for safe operation. With a compact design and UL508 listing, it is suitable for industrial control equipment.
- AC Input Voltage Range: 90~264VAC; 127~370VDC
- AC Inrush Current (max.): Cold start, 35A at 230VAC
- DC Adjustment Range: 12V: 12~14V, 24V: 24~28V, 48V: 48~55V
- Current Adjustment Range: 10%~100% rated output current adjustable
- Overload Protection: 105%~130% Constant current limiting, auto-recovery
- Over Voltage Protection: 14V: 14~17V, 24V: 29~33V, 48V: 56~65V
- Over Temperature Protection: Shut down o/p voltage, re-power on to recover
- Withstand Voltage: I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
The power supply meets safety standards UL60950-1 and TUV EN60950-1, along with EMC standards EN55022 classA. It has screw DIN terminals for easy connection and operates in a temperature range of -20~+60°C.
Related Documents:
- EDR-120 Datasheet
- EDR-120-12 Test Report
- CE Certificate (EDR-120)
- UL Certificate (EDR-120)
- TUV Certificate (EDR-120)
- EMC Certificate (EDR-120)
* Images are for illustration only; actual product may vary.
