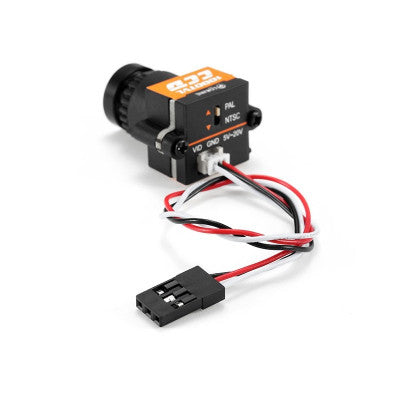

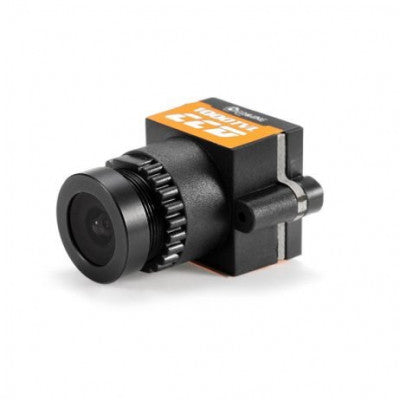

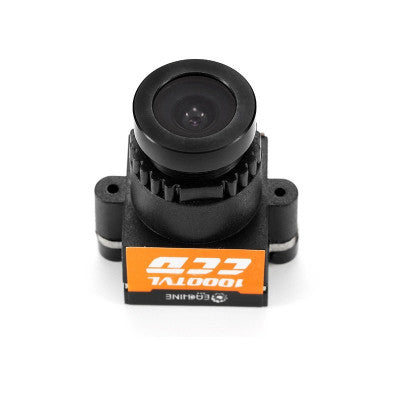

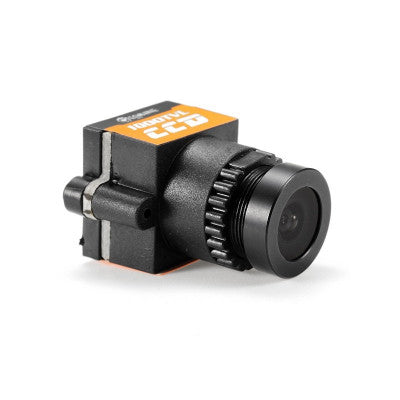

Eachine 1000 TVL Camera 2.8mm Lens FPV Camera
High Definition camera with 1/3 CCD sensor for FPV RC Drone Quadcopter
- Item Name: Eachine 1000TVL 1/3 CCD 110 Degree 2.8mm Lens Mini FPV Camera
- Input Voltage: 5-20V
- Power Consumption: 105mA-27mA
- Lux: 0.08Lux/ F1.2
- Sensor: 1/3 CCD
- Format: NTSC/PAL(Free switch)
-
Resolution:
- a. Ultra High Definition 1000TVL
- b. PAL: 976H X 582V
- c. NTSC: 976H X 494V
- Lens: 2.8mm IR coated
- FOV: 110
- Operating temperature: 0 to 40C
- Camera size: 28 * 24.5 * 17.5mm
- Lens Size: 17mm *14mm
- The screw of Lens: M12
- Net Weight: 10.4g (not including the box and cable)
Features:
- 1/3 CCD sensor

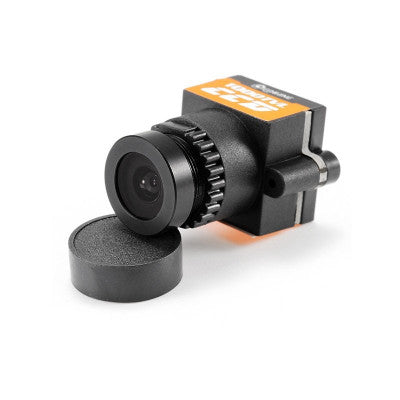

- Lens cover for protection
- WDR function
- Super lightweight and low power consumption
Adopts a 1/3 CCD sensor with low illumination of 0.08Lux/F1.2, making it easy to set up parameters. The wide operating voltage range of 5 to 12V and ultra-low power consumption make it an excellent choice for your Drone/Multicopter for video recording and imaging.
The package includes 1 x 1000TVL FPV Camera, 1 x Cable, and 1 x Lens Cover.
Images are for illustration only; actual product may vary.
