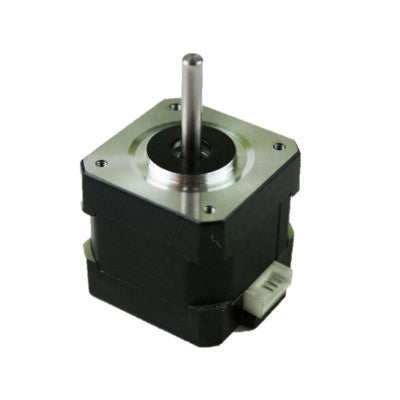

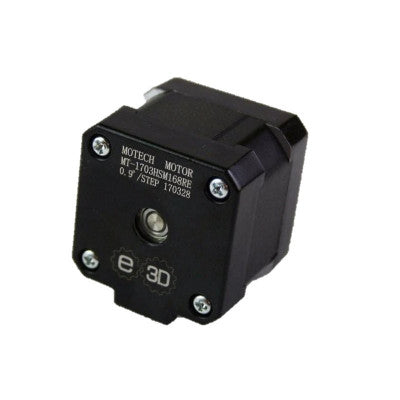

Ultra-Slim NEMA17 Stepper Motor for Titan Extruder
Compact and powerful motor designed for Titan extruder use
- Model: NEMA 17
- Step Angle: 0.9 degree
- Steps Per Revolution: 400
- Rated Voltage: 2.8V
- Phase: 1.68
- Holding Torque: 3.5kg/cm (48.6oz/in)
- Body Size: 40mm
- Output Shaft Length: 25mm
- Output Shaft Diameter: 5mm
- Cable Length: 1 meter
- Weight: 265g
Top Features:
- Compact Design
- High torque in class
- Most Trusted brand in 3D printer community
- Accurate 0.9 Step Angle
This motor is lighter and shorter than a typical NEMA17 motor, yet it delivers almost as much torque. Ideal for geared or direct extruders, and commonly used on our Titan extruder. It is also suitable for light-duty printer axes, such as a dual leadscrew Z axis utilizing 2 motors. The package includes a 3D printed bracket for mounting a Titan extruder on your 3D printer.
Custom-made for Titan and Titan Aero extruders, these motors strike a perfect balance of size, weight, torque, and shaft. They come with a 1000mm pluggable cable for convenience.
Package Includes:

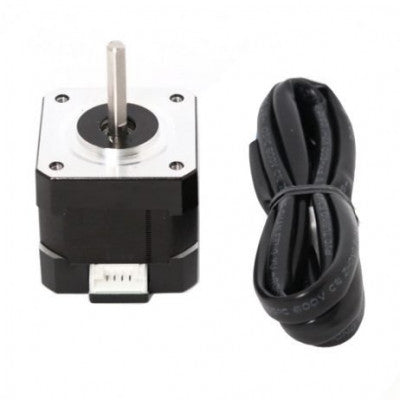

- 1 x E3D Nema17 Compact Powerful Motor
- 1 x Connecting Cable (1M)
Images are for illustration only; actual product may vary.
