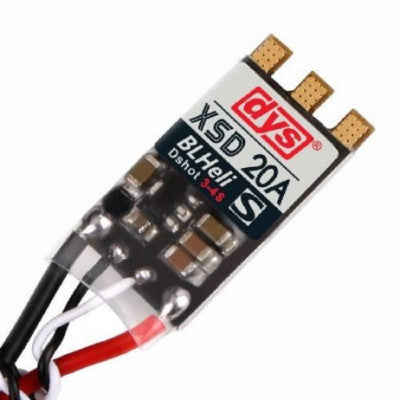

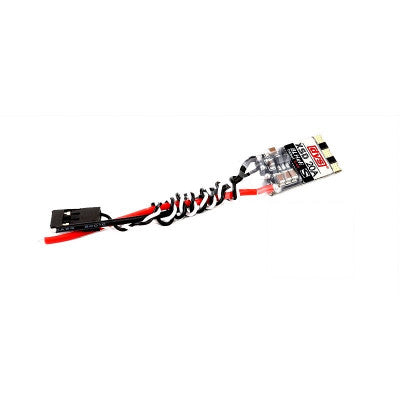

DYS XSD20A ESC Solder Version
High-speed ESCs designed for racing drones with DShot capability
- Model: XSD20A
- Supports Software: DShot300/DShot600
- Firmware: BLheli_S
- BEC: NO
- MCU: Silabs EFM8BB21
- Continuous Current (A): 20
- Operating Voltage (VDC): 12.6-16.8V (3-4S Lipo)
- Color: Black
- Dimensions (mm): LxWxH 26 x 14 x 4.5
- Weight (gm): 1.2
Features:
- High-performance EFM8BB21 50MHz MCU
- 12FET Design for high-current burst rating
- High-Resolution Throttle steps
- Supports BLheli_S & DShot600, DShot300
The DYS XSD series speed controllers (ESC) have been designed for high-speed motors, making them ideal for racing drones. These ESCs utilize a high-performance Silabs EFM8BB21 microprocessor for smooth response and high-resolution throttle steps. They come pre-flashed with BLHeliS firmware and support DShot300 or DShot600. Firmware upgrades can be done via the signal wire using a USB Linker.
The DYS XSD20A ESC Solder Version is capable of handling motors with super high KV, with the EFM8BusyBee 50MHz MCU able to handle up to 500k eRPM. These ESCs do not require calibration and are designed for a hassle-free setup.
