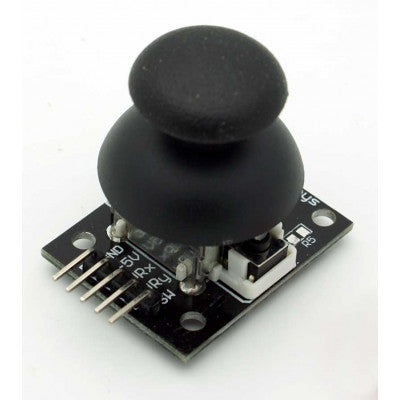

Dual Axis High Quality Joystick Module
A versatile module for sensing movements in 2 directions with an inbuilt switch.
- Dimensions: 40 x 27 x 15 mm (LxWxH)
- Weight: 10gm (without Hat)
- Operating Voltage: 5V
- Interface: 2.54mm pin interface leads
-
Features:
- Two 10k potentiometers for X and Y axes
- Inbuilt switch activated by pressing the stick
- Output two analog values representing two directions
- Long service life and stable performance
This Dual Axis High-Quality Joystick Module is designed to measure position coordinates on the X and Y axis by moving the "hat". The X and Y axes are controlled by two 10k potentiometers, generating analog signals for 2D movement. The module operates on a 5V power supply and outputs analog values ranging from 0V to 5V based on joystick movement.
The module also features a press-able switch that can be activated by pushing the "hat" down, similar to an XBOX controller. It is a standard interface electronic building block widely used in Arduino DIY projects. The cross rocker acts as a two-way 10K resistor, providing versatility in different directions.
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
Images are for illustration only; actual product may vary.
