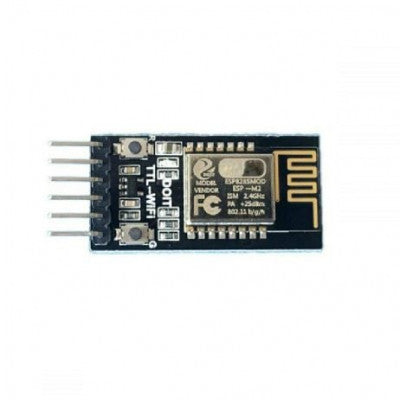

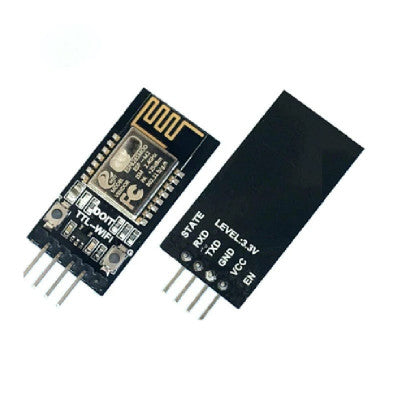

DT-06 WiFi Serial Port Transparent Transmission Module TTL to WIFI
Designed for seamless data transmission with ESP-M2 WiFi module
- Working Voltage: 4.5V~6.0V, TTL working voltage: 3.3V (compatible with 5.0V)

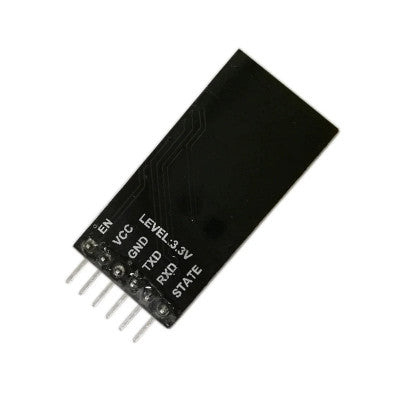

- Provided Pins: STATE, TXD, RXD, EN
- Average Current: 80mA; when data sent, it is 170mA; but it is 20A at deep sleep mode
- Support Baud Rate (bps): 300/600/1200/2400/4800/9600/19200/38400/57600/74800/115200/230400/460800/921600/1843200/3686400
- Working Temperature: -40-125
- Product dimensions (mm): 40 x 17 x 7
- Product weight (g): 5g
Features:
- Fully compatible with original serial Bluetooth interface
- Built-in industrial transparent transmission firmware V3.0
- Supports serial AT command and re-programmable firmware
- Seamless transparent transmission between serial and WiFi
TTL-WiFi is designed for real-time data transmission to the cloud with low-power control and status indicators. It can replace old serial WiFi devices for efficient data collection and control. The module includes a built-in HTTP Server for easy parameter configuration via browsers on PCs, mobile phones, or other smart devices without the need for additional tools or apps. Connect to the WiFi hotspot with PCs, phones, and smart devices without a password.
Applications include smart home systems, wireless data connections, smart car control, wireless serial printers, LED light industrial control, and more.
* Images are for illustration only; actual product may vary.
