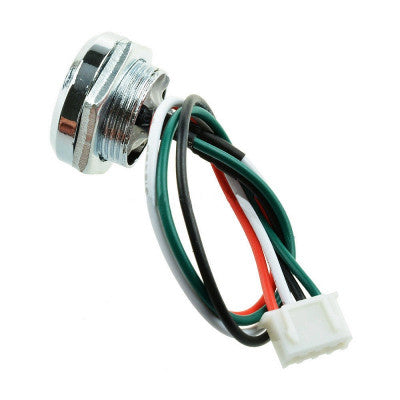

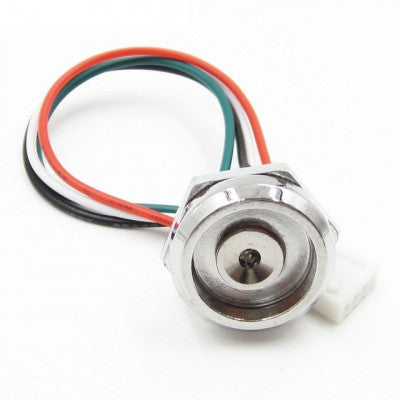

DS9092+ iButton Probe with LED Light
This probe assists in data transfer to and from an iButton, featuring LED feedback.
- LED max. rating: 20mA DC @ 2.7V typ.
- Max. panel thickness: 3mm
- Fixing type: Brass M18 x 1 nut
- Button Outer Diameter (mm): 22
- Cable Length (cm): 15
Top Features:
- Simple, low-cost metal stampings for iButton family
- Guides iButton entry and self-cleaning contacts
- Shallow probe cavity for easy debris removal
- Flexible design for panel or hand-grip mount
This probe, designed for the iButton family, facilitates data transfer with a self-aligning interface. The LED within the probe offers user-feedback signaling. The Molex connector terminated cable assembly simplifies system integration.
The panel-mount probe is prewired for easy installation, while the hand-grip probe can quickly mate to an RJ-11 jack. The bright tarnish-resistant metal surface ensures durability for millions of operations.
Package Includes: 1 x DS9092+ iButton Probe with LED Light
* Images are for illustration only; actual product may vary.
