DS8921 Differential Line Driver and Receiver Pair
Designed for ST506, ST412, and ESDI Disk Drive Standards
- Part Number: DS8921
- Supply Voltage(s) (Nom) (V): 5
- Number of TX: 1
- Number of RX: 1
- Duplex: Full
- Signaling Rate (Max) (Mbps): 10
- IEC 61000-4-2 Contact (+/- kV): None
- HBM ESD (kV): 2
Top Features:
- 12-ns Typical Propagation Delay
- Output Skew: 0.5 ns Typical
- Meets EIA Standard RS-422
- High Differential/Common-Mode Input Voltage Ranges
The DS8921 device is a differential line driver and receiver pair specifically designed for applications meeting the ST506, ST412, and ESDI disk drive standards. It also complies with the EIA standard RS-422. The DS8921x receivers offer 200 mV input sensitivity over a ±7 V common mode operating range.
Hysteresis of typically 70 mV is incorporated to enhance noise margin for slowly changing input waveforms. The DS8921x drivers provide unipolar differential drive to twisted-pair or parallel wire transmission lines. Complementary outputs are logically ANDed and offer an output skew of 0.5 ns typical with 12 ns propagation delays.
These devices are TTL and CMOS compatible. The DS8921AT model is designed for industrial temperature operation ranging from -40°C to +85°C.
Specifications:
- Part number: DS8921
- Supply voltage(s) (Nom) (V): 5
- Number of TX: 1
- Number of RX: 1
- Duplex: Full
- Signaling Rate (Max) (Mbps): 10
- IEC 61000-4-2 Contact (+/- kV): None
- HBM ESD (kV): 2
- Fault protection(V): -12 to 12
- Number of nodes: 32
- Common mode range: -7 to 7
- ICC(Max) (mA): 35
- Isolated: No
- Operating temperature range(C): -40 to 85, 0 to 70
- Package Group: SOIC | 8

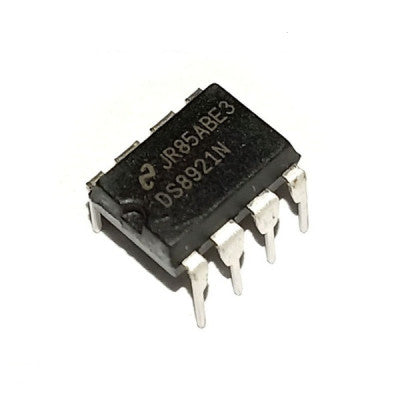

Images are for illustration only; actual product may vary.
