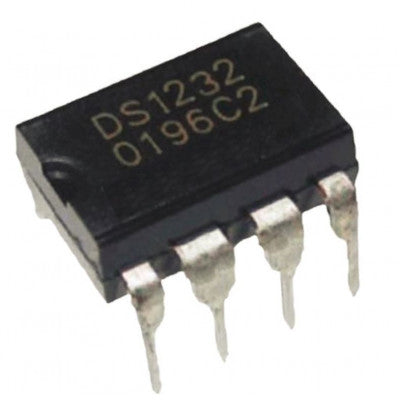

DS1232 Micro Monitor™ Chip
Monitors vital conditions for a microprocessor and provides reset control.
- Voltage on V CC Pin: -0.5 V to +7.0 V
- Voltage on I/O Relative to Ground: -0.5 V to VCC + 0.5 V
- Operating Temperature: 0°C to 70°C
- Operating Temperature (Industrial Version): -40°C to +85°C
- Storage Temperature: -55°C to +125°C
- Soldering Temperature: 260°C for 10 seconds
- Pack/Unit: 1 piece
Features
- Halts and restarts an out-of-control microprocessor
- Holds microprocessor in check during power transients
- Automatically restarts microprocessor after power failure
- Monitors push button for external override
The DS1232 Micro Monitor™ Chip is designed to monitor three vital conditions for a microprocessor: power supply, software execution, and external override. It provides precise monitoring of VCC with the ability to generate a power fail signal in case of an out-of-tolerance condition. The chip also offers push button reset control and includes a watchdog timer that forces reset signals if necessary.
With accurate power supply monitoring and the ability to eliminate the need for discrete components, the DS1232 is a compact solution ideal for various applications. The optional industrial temperature version extends the operating range from -40°C to +85°C, making it suitable for a wide range of environments.
For more details or bulk pricing inquiries, please contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
