DJI NAZA-M V2 Multirotor Autopilot Controller set With GPS
Manage pilot input and interpret data for stable flying condition.
- Model: DJI NAZA-M V2
- Input Voltage (V): MC: 4.8 to 5.5 V, VU: 7.4 to 26.0 V (2S to 6S LiPo recommended)
- Power Consumption (Watt): 1.5
- Operating Temperature Range (C): -10 to 50
- Firmware: NAZAM V2
- Weight (gm): MC: 27 g, PMU: 28 g, GPS: 27 g
- Dimensions (mm): LxWxH MC: 45.5 x 32.5 x 18.5 mm, PMU: 39.5 x 27.5 x 10 mm, GPS & Compass: 46 (diameter) x 10 mm
- Micro-SD Card Slot: No
Top Features:
- All-In-One Compact Autopilot System
- Free Ground Station
- Intelligent Orientation Control (IOC)
- Supports 9 Different Multi-Rotor Configurations

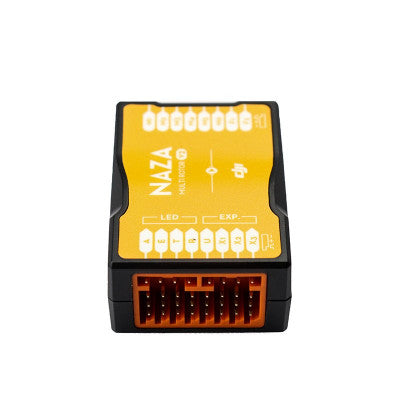

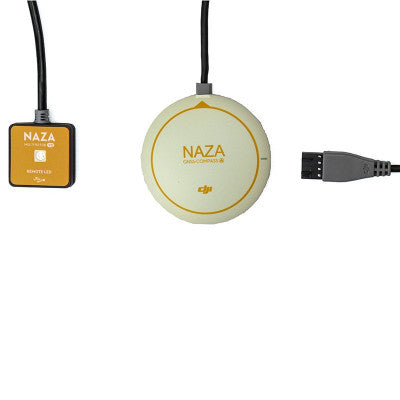

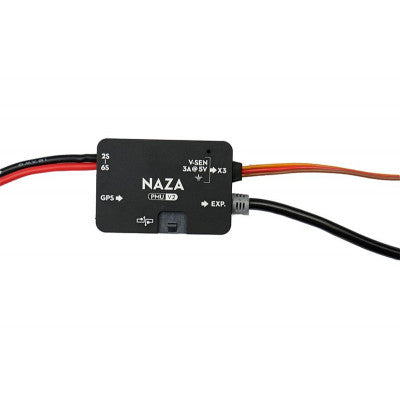

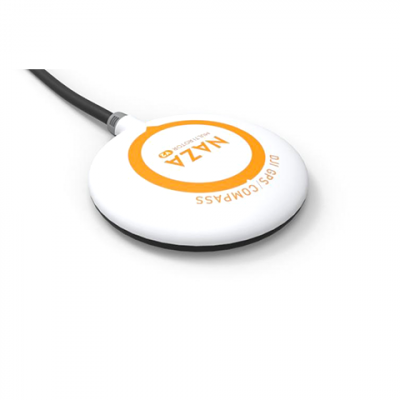

The DJI NAZA-M V2 Multirotor Autopilot Controller set With GPS supports nine multi-rotor configurations. The main controller (MC) houses the flight computer, while the power management unit (PMU) regulates power to the rotors. The GPS receiver/compass combo enables features like Intelligent Orientation Control (IOC) and the Go Home failsafe. CAN-Bus ports allow interfacing with DJI accessories.
Flight Performance:
- Hovering Accuracy (GPS Mode): Vertical: 2.6 / 0.8 m, Horizontal: 8.2 / 2.5 m
- Max Angular Speed: 200/s
- Max Tilt Angle: 35
- Ascent/Descent: Ascent: 19.7 ft/s / 6 m/s, Descent: 14.8 ft/s / 4.5 m/s

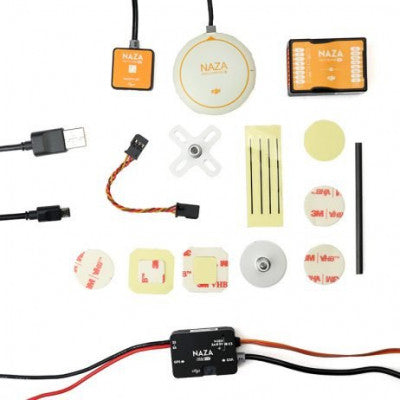

Package Includes:
- 1 x Main Controller Unit
- 1 x Power Management unit
- 8 x Servo cable
- 1 x LED Module
- 1 x Micro USB Cable
- 2 x Adhesive Tape
- 1 x GPS Module
Images are for illustration only; actual product may vary.
