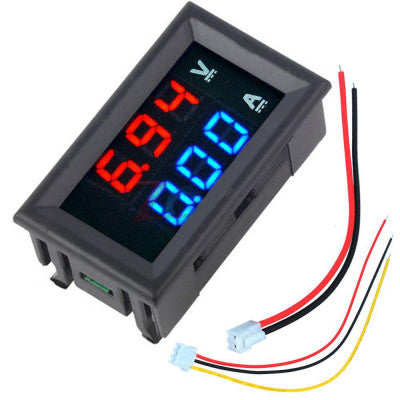

Digital Voltmeter (0-100V) and Ammeter (10 A) Dual Led Voltage Current Measurement Module
Measure voltage and current simultaneously with high accuracy.
- Input Voltage: 4.5V to 30V DC
- Input Current: <= 20mA
- Display Color: Red (Voltage), Blue (Current)
- Measuring Voltage Range: 0V to 100V DC
- Measuring Current Range: 0A to 10A
- Measurement Accuracy: 1%
- Minimum Voltage Resolution: 0.1V
- Minimum Current Resolution: 0.01A
- Size: 48x29x21mm
Features:
- High precision measurements
- Dual LED display for voltage and current
- Compact size
- Easy to wire
Note: Maximum Input Voltage should not exceed 30V to avoid the risk of burning.

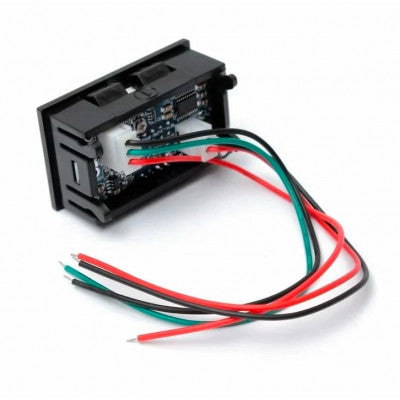

Wiring:
Black line (thin): vacant or buck circuit (module) Negative
Red line (thin): power supply Positive
Black line (thick): COM, common measuring
Red line (thick): PW+, measuring terminal voltage input positive
Yellow line (thick): IN+, current input Positive
Package Contains:
- 1 x Digital Voltmeter & Ammeter Module
- 1 x Two wire thin connector
- 1 x Three wire thin connector
Images are for illustration only; actual product may vary.
