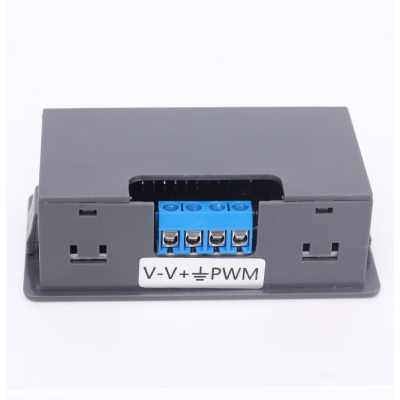

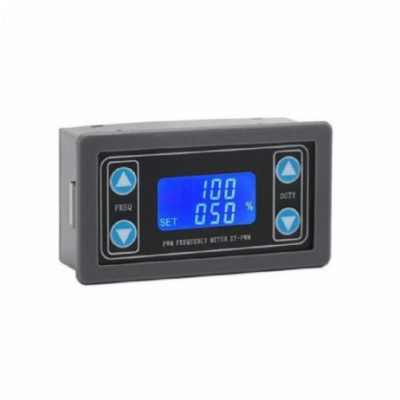

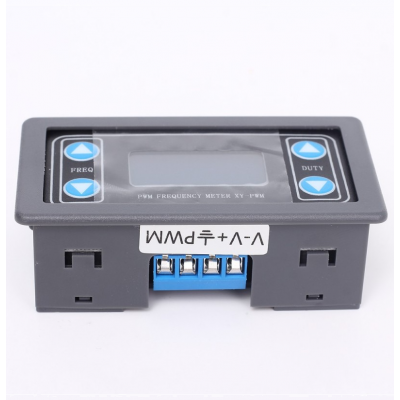

PWM Generator with Protective Shell
A versatile PWM generator with a frequency range of 1Hz to 150KHz
- Model: XY-PWM
- Microcontroller IC: N76E003AT20
- Operating Voltage (VDC): 3.3 ~ 30
- Frequency Range: 1Hz~150KHz
- Frequency Accuracy: 2%
- Signal Load Capacity: Output current can be around 5~30mA
- Output Amplitude: PWM amplitude is equal to supply voltage
- Operating Temperature (°C): -20 to 70
- Length (mm): 79
- Width (mm): 43
- Height (mm): 27
- Weight (gm): 36
- Shipment Weight: 0.039 kg
- Shipment Dimensions: 8 x 5 x 3 cm
Features:
- Bright LCD Display
- Supports UART
- Adjustable Frequency Output
- High Accuracy Detection
This PWM generator, housed in a protective shell, is designed to provide an accurate and reliable source of PWM where needed. With a frequency range from 1Hz to 150KHz, it offers versatility in various applications.
The device also features a power-OFF memory function and supports duty cycle adjustment for added flexibility.
Package Includes: 1 x Digital PWM Generator with Display
* Images are for illustration only; actual product may vary.
