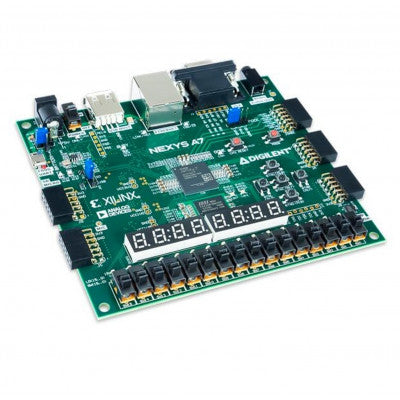

Nexys A7 FPGA Development Board
An accessible and powerful FPGA development board designed around the Xilinx Artix-7 FPGA family.
- Variant: Nexys A7-100T (XC7A100T-1CSG324C)
- Supported Software: Xilinx Vivado Design Suite, WebPACK edition
- Programming Software: Digilent Adept
- System Power: USB or 7V-15V source
- Connectivity: 10/100 Mbps Ethernet, USB-UART Bridge
- Interaction Devices: 3-axis accelerometer, PDM microphone, PWM audio output, Temperature Sensor
- Display: 2 four-digit seven-segment displays, 12-bit VGA output
- Expansion: 4 Pmod connectors
Top Features:
- Internal clock speeds exceeding 450MHz
- On-chip analog-to-digital converter (XADC)
- Programmable over JTAG and Flash
- 16 MB QSPI Flash
Students can start learning immediately with the Nexys A7, featuring a variety of interfaces like 10/100 Ethernet, USB, UART, JTAG, and VGA. The board includes a temperature sensor, microphone, accelerometer, and 5 Pmod ports for customization.
The Nexys A7-50T variant has been discontinued. The Nexys A7 is powered from USB or any 7V-15V source and includes a microSD card connector for expanded storage options.
Product Compliance: HTC:8471500150, ECCN:5A992.c
Package Includes: 1 x Digilent Nexys A7 FPGA Trainer Board, 1 x Micro USB cable
*Images are for illustration only; actual product may vary.
