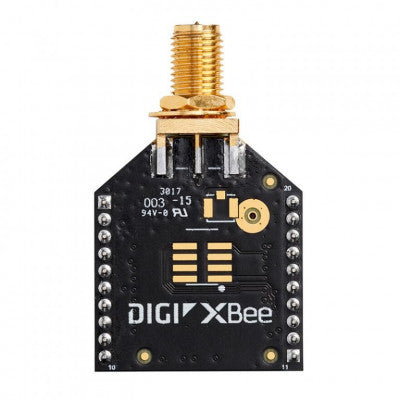

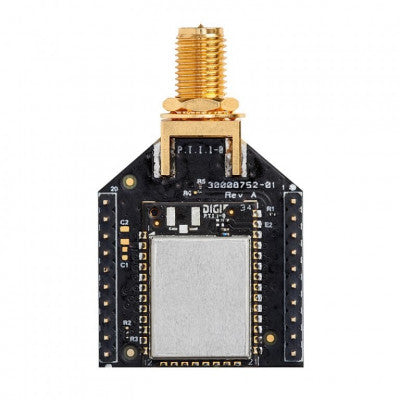

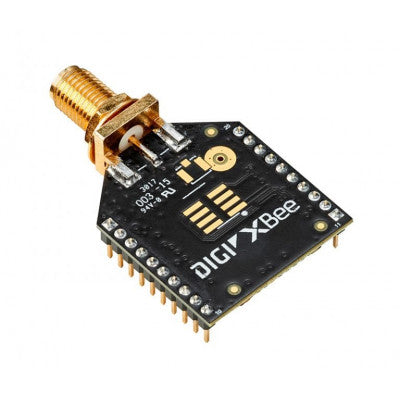

Digi XBee3 2.4GHz ZB3.0 RP-SMA Female Antenna
Accelerate wireless connectivity with Digi XBee3 modules
- Transceiver Chipset: Silicon Labs EFR32MG SoC
- Digi XBee Part Number: XB3-24Z8ST-J
- Data Rate: RF 250 Kbps, Serial up to 1 Mbps
- Rated Indoor/Urban Range: Up to 200 ft (60 m)
- Rated Outdoor/RF Line-of-Sight Range: Up to 4000 ft (1200 m)
- Receiver Sensitivity (1% PER): -103 dBm Normal Mode
- Transmit Power: +8 dBm
- Supply Voltage: 2.1 to 3.6V
Top Features:
- Compact size at 13mm x 19mm
- Supports ZigBee, 802.15.4, DigiMesh, and BLE protocols
- Programmable with Micro Python
- Intrinsic IoT security with Digi TrustFence
The Digi XBee3 2.4GHz ZB3.0 RP-SMA Female Antenna offers a fully interoperable ecosystem covering various vertical markets such as building automation, smart energy, digital health, and intelligent lighting. With Digi Remote Manager, configuration and control are made easy from a central platform. The built-in Digi TrustFence security features ensure data privacy and protection against cyber threats.
The difference between XBee and XBee Pro lies in the size, power usage, range, and pricing. XBee-PRO TH modules are slightly longer and consume more power than regular XBees, offering a longer range and higher MSRP.
Specifications:
- Serial Data Interface: Uart, Spi, I2c
- Configuration Method: API Or At Commands, Local Or Over-the-air (Ota)
- Frequency Band: ISM 2.4 GHz
- Form Factor: Micro, Through-hole, Surface Mount
- Interference: Immunity Dsss (Direct Sequence Spread Spectrum)
- Adc Inputs: (4) 10-bit Adc Inputs
- Digital I/o: 15
- Antenna Options: Through-hole: Pcb Antenna, U.fl Connector, RP-SMA Female Connector
- Operating Temperature: -40°C to +85°C
Package Includes: 1 x Digi XBee3 2.4 GHz ZB 3.0 RP-SMA Female Antenna.
