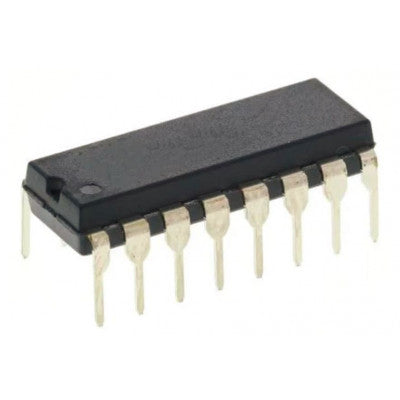

DG408 Analog Multiplexers
Featuring guaranteed matching between channels and flatness over the signal range
- Spec name: 1-of-8 multiplexer/demultiplexer
- Spec name: Operating Temperature Ranges: 0°C to +70°C
- Spec name: Storage Temperature Range: -65°C to +150°C
- Spec name: Lead Temperature: +300°C
- Spec name: Peak Current: 100mA
- Spec name: Continuous Current: 30mA
Top Features:
- Pin-Compatible Plug-In Upgrades for Industry Standard DG408
- Guaranteed Matching Between Channels, 8? Max
- Guaranteed On-Resistance Flatness, 9? Max
- Guaranteed Low Charge Injection, 15pC Max
These DG408 analog multiplexers now feature guaranteed matching between channels (8? max) and flatness over the specified signal range (9? max). These low on-resistance muxes (100? max) conduct equally well in either direction and feature guaranteed low charge injection (15pC max). In addition, these new muxes offer low input off-leakage current over temperature—less than 5nA at +85°C. The DG408 is a 1-of-8 multiplexer/demultiplexer. The muxes operate with a +5V to +30V single supply and with ±5V to ±20V dual supplies. ESD protection is guaranteed to be greater than 2000V per Method 3015.7 of MIL-STD-883. These improved muxes are pin-compatible plug-in upgrades for the industry standard DG408.
