DFRobot Gravity Lab Grade Analog Electrical Conductivity Sensor / Meter(K=10)
High-precision sensor for measuring electrical conductivity in liquids.
- Measurement Range: Up to 100ms/cm
- Voltage Input: 3~5V
- Compatibility: 5V and 3.3V main control boards
- Excitation Source: AC signal
- Calibration Method: Single-point calibration
Features:
- 3.0~5.0V wide voltage input
- 0~3.2V output voltage
- AC excitation source for reduced polarization
- Gravity connector and BNC connector for easy setup
This sensor is particularly used for measuring high electrical conductivity liquids like seawater and concentrated brine. It is ideal for water quality applications in mariculture, marine fisheries, and marine aquariums. The sensor supports a wide voltage input range and is compatible with popular main control boards such as Arduino and Raspberry Pi. The AC excitation source reduces the polarization effect, ensuring precision and prolonging the probe's life. The software library simplifies calibration with automatic identification of standard buffer solutions.
For more information and detailed specifications, refer to the product page.

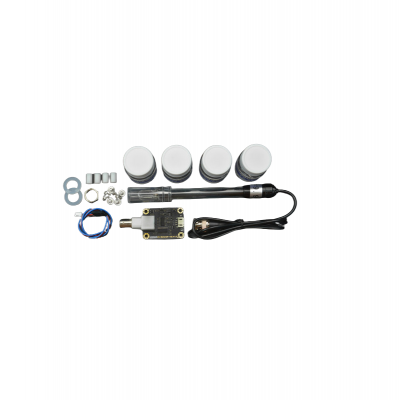

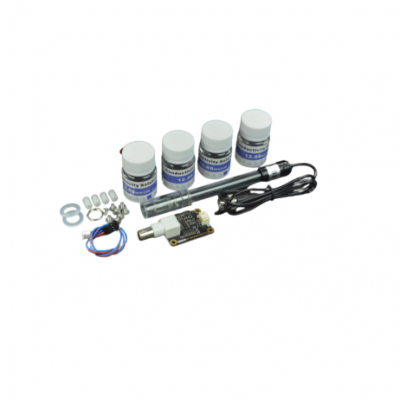

Package Includes:

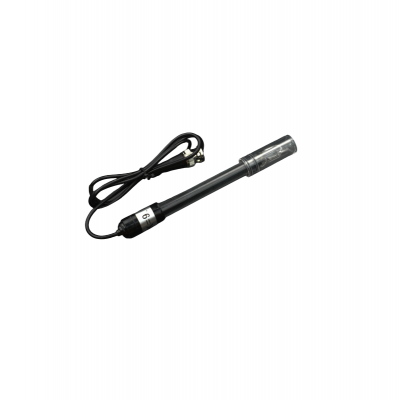

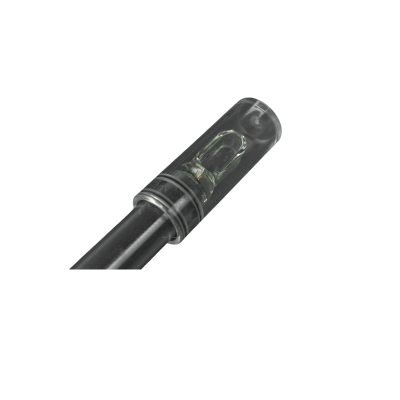

- Electrical Conductivity Probe K=10, Laboratory Grade
- Signal Conversion Board

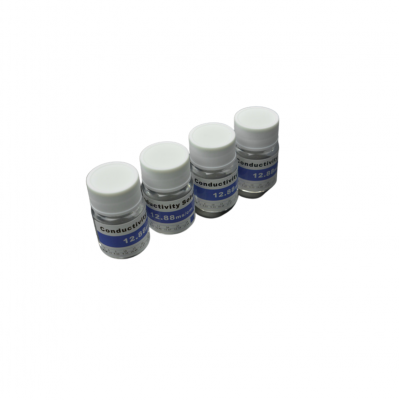

- Standard Buffer Solution 12.88ms/cm (4x)
- Gravity Analog Sensor Cable (1x)
- Waterproof Gasket (2x)
- Screw Cap for BNC Connector (1x)
- M3 x 10 Nylon Pillar (4x)
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
