DFRobot Gravity: Analog pH Sensor pro V2
Measure pH levels with precision and ease
- Supply Voltage: 3.3~5.5V
- Output Voltage: 0~3.0V

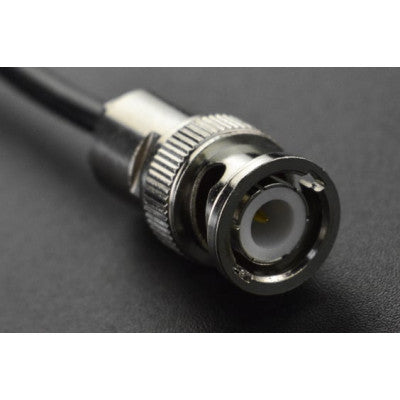

- Probe Connector: BNC
- Signal Connector: PH2.0-3P
- Measurement Accuracy: 0.1@25
- Dimension: 42mm*32mm/1.66*1.26in
Features:
- 3.3~5.5V wide voltage input
- Hardware filtered output signal, low jitter
- Gravity connector and BNC connector, plug-and-play, no soldering required
- Software library supports two-point calibration and automatically identifies standard buffer solution
DFRobot Gravity: Analog pH Sensor pro V2 is an upgraded version of pH meter pro V1, offering improved precision and user experience. It supports a wide voltage supply of 3.3~5.5V, making it compatible with various main control boards like Arduino and LattePanda. The industry electrode ensures fast response and good thermal stability, suitable for online monitoring.

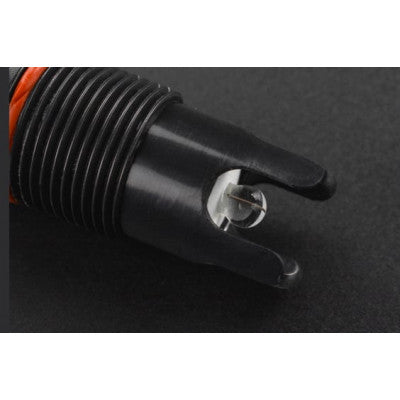

The pH Probe included is industrial-grade with a detection range of 0~14 and temperature range of 0~60C. It has an accuracy of 0.1pH at 25 and a quick response time of less than 1 minute. The probe's life span is over 0.5 years based on water quality.

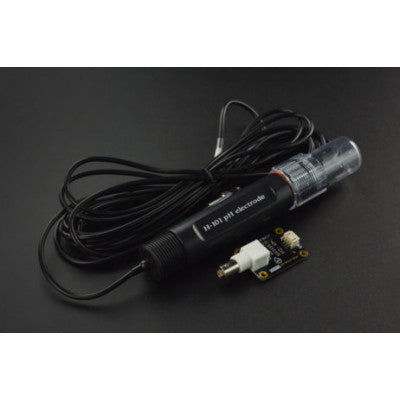

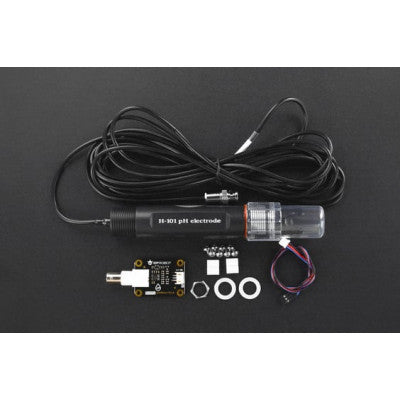

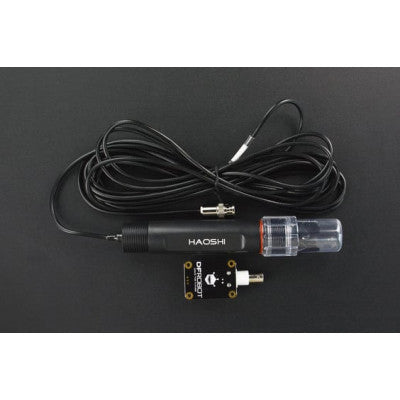

Package Includes:
- 1 x pH Probe (Industrial Grade)
- 1 x pH Signal Conversion Board V2
- 1 x Gravity Analog Sensor Cable
- 2 x Waterproof Gasket
- 1 x Screw Cap for BNC Connector
- 4 x M3 * 10 nylon pillar
- 8 x M3 * 5 screws
*Images are for illustration only; actual product may vary.
