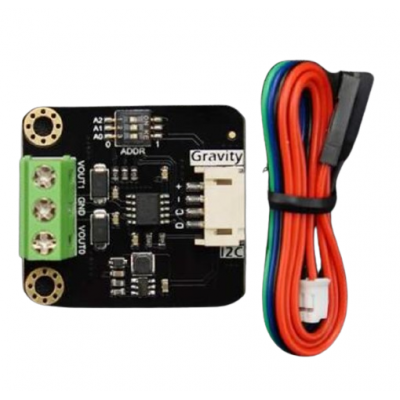

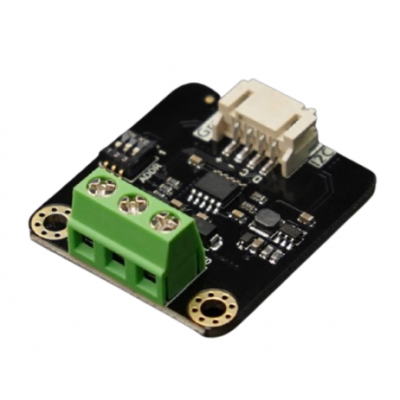

GP8413: 2-Channel 15-bit I2C DAC Module
High-precision DAC module with 15-bit resolution and 0.2% accuracy.
- Resolution: 15-bit
- Accuracy: 0.2%
- Output Voltage: 0-10V or 0-5V
- Communication: I2C
- Channels: 2
- Power Supply: 3.3V-5V
- Linearity Error: 0.01%
-
Features:
- Supports 3.3V-5V power supply
- Output voltage error < 0.2%
- Output voltage linearity error 0.01%
- Two channels for 0-5V or 0-10V output
This 2-channel DAC module with I2C communication and 15-bit resolution offers high precision and accuracy for automation applications like light adjustment, frequency converters, valve regulation, and pump control. It can drive various 0-10V or 0-5V controlled devices through Arduino programming, making it ideal for scenarios requiring fine speed or angle control.
The DAC series modules provide multiple output signal ranges, selectable resolutions (8-bit, 12-bit, 15-bit), and support for single or dual-channel configurations. They can be cascaded for multi-channel output control.
Applications:
- Automatic light adjustment
- Variable frequency drive (VFD)
- Automatic valve regulation
- Automatic water pump control
Features:
- Supports 3.3V-5V power supply
- Output voltage error < 0.2%
- Output voltage linearity error 0.01%
- Two channels for 0-5V or 0-10V output
- Gravity interface, I2C communication, Arduino control
- 8 adjustable I2C addresses for up to 16 devices control
- Package Includes:
- 1 x GP8413: 2-Channel 15-bit I2C to 0-5V/10V DAC Module
- 1 x Gravity-4P I2C/UART Sensor Cable
*Images are for illustration only; actual product may vary.
