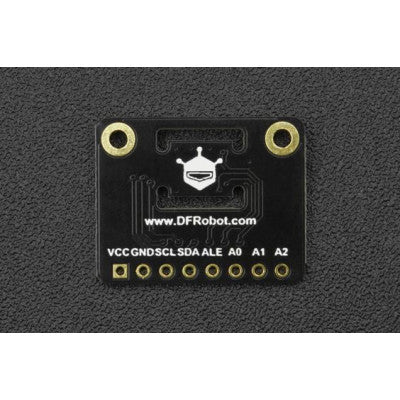

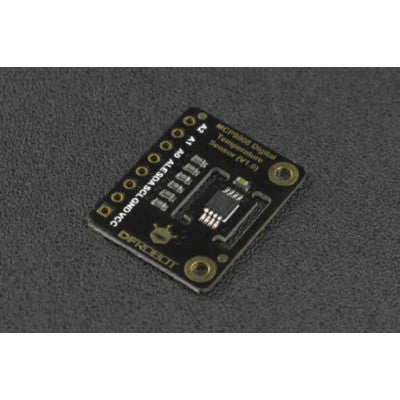

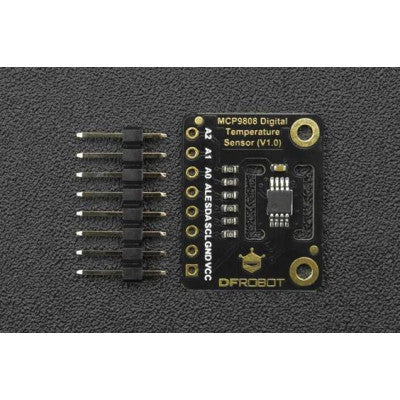

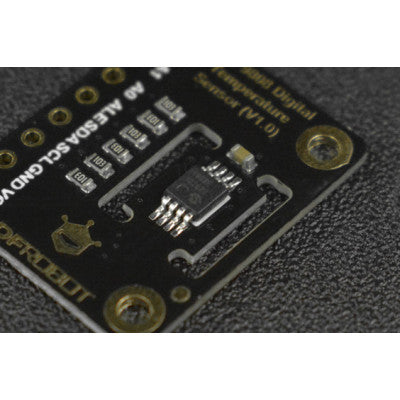

DFRobot Fermion: MCP9808 High Accuracy I2C Temperature Sensor
Accurate and versatile temperature sensor with user-programmable settings
- Accuracy: 0.25C (typical), 0.5C (maximum)
- Temperature Range: -40C to +125C
- Precision: ±0.0625C
-
Features:
- High-temperature detection accuracy
- Wide temperature detection range
- User-programmable registers
- Alert signal output
Compared to DS18B20, LM35, and other common temperature sensors, the MCP9808 is one of the more accurate temperature sensing options. It offers a typical accuracy of 0.25C and a maximum accuracy of 0.5C over the sensors -40C to +125C range, with a precision of ±0.0625C.
The MCP9808 comes with user-programmable registers that allow user-selectable settings such as Shutdown or Low-Power modes and the specification of temperature Alert window limits and critical output limits. When the temperature changes beyond the specified boundary limits, the MCP9808 outputs an Alert signal. The user has the option of setting the Alert output signal polarity as an active-low or active-high comparator output for thermostat operation, or as a temperature Alert interrupt output for microprocessor-based systems.
These features make the MCP9808 ideal for sophisticated, multi-zone, temperature-monitoring applications.
APPLICATIONS
- Industrial Freezers and Refrigerators
- Food Processing
- Personal Computers and Servers
- PC Peripherals
- Consumer Electronics
- Package Includes: 1 x DFRobot Fermion: MCP9808 High Accuracy I2C Temperature Sensor
Images are for illustration only; actual product may vary.
