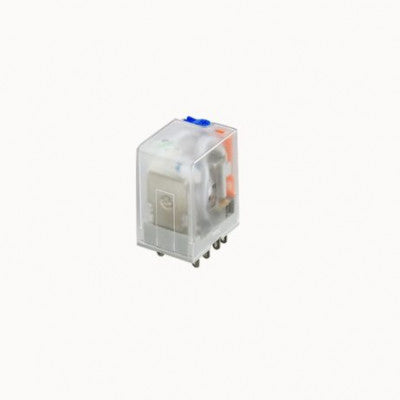

Single Relay-DRPE-2CH-LR-D24-07A(H)
A compact and efficient relay for industrial applications.
- Model: DRPE-2CH-LR-D24-07A(H)
- Test Button: Yes
- Instruct Light: Yes
- Maximum Current Rating: 7A
- Input Voltage: 24VDC
- Coil Power Consumption: 0.9W
- Contact Resistance: 50m
- Insulation Resistance: 100M
- Dielectric Strength: Between coil and contacts 500VAC for 1 minute
- Operate Time: 20ms
- Release Time: 10ms
- Mechanical Endurance: 10,000,000 cycles
- Electrical Endurance: 100,000 cycles at rated load
- Ambient Temperature Range: -40C to +70C
- Weight: Approximately 30g
- Package Includes: 1 x Degson Single relay 2C 24VDC
Top Features:
- Two convert contacts for controlling separate circuits
- Test button for easy testing and troubleshooting
- Instruction light for clear visual indication of circuit status
- Maximum current rating of 7A
The Single Relay-DRPE-2CH-LR-D24-07A(H) is a reliable and versatile component suitable for any industrial control system. With its compact design and efficient performance, it is ideal for a variety of applications.
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
