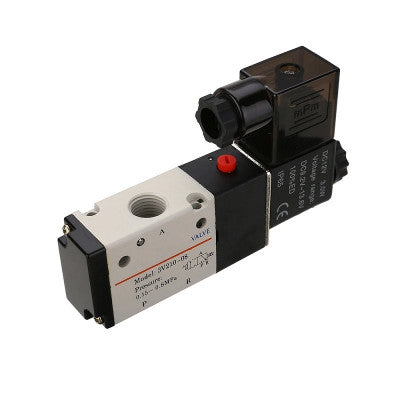

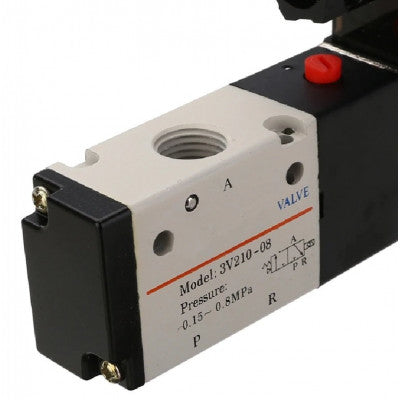

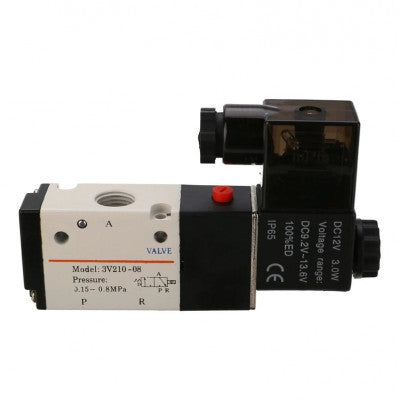

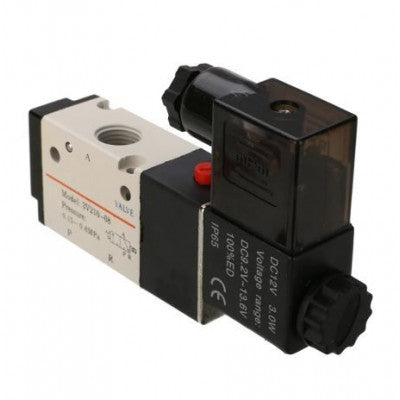

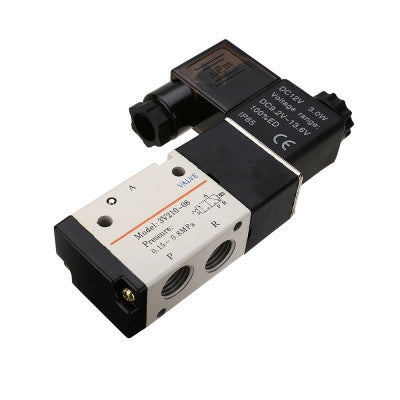

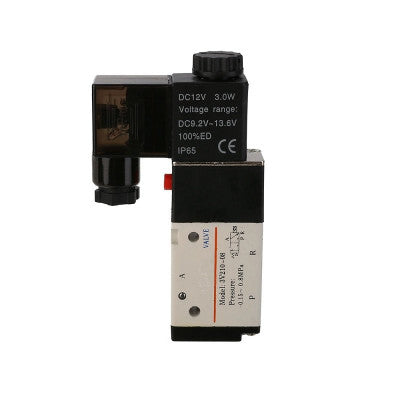

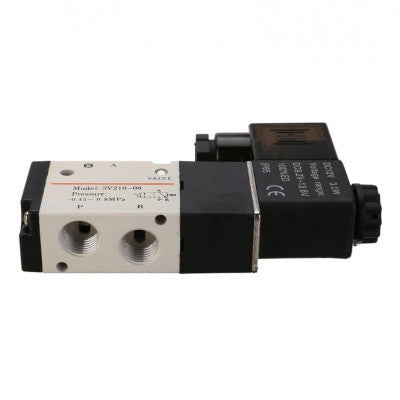

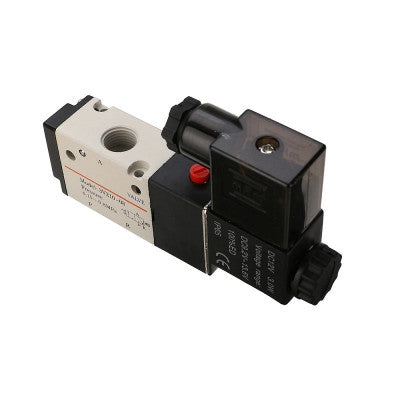

DC12V 1-4 inch 3 Way 2 Position Pneumatic Solenoid Valve for Water Air Gas
Efficient and reliable solenoid valve for various applications.
- Model: 3V210-08
- Biggest Withstanding Pressure: 12kgf/c
- Working Medium: Air (40 micron cleaned)
- Power Consumption: DC12V, 2.5W
- Motion Pattern: Internal Pilot
- Protection Class: IP65 (DIN40050)
- Adapters Caliber: Air-in=Air Out=PT1/8, Air-in=Air Out=PT2/8, Air-in=Air Out=PT3/8
- Electrifying Model: Box Type
- The Position Counting: Three-mouth Two-position
- Body Material: Al Alloy
- Ambient Temperature: 5~60°C (23~140°F)
- Highest Action Frequency: 5/sec
- Effective Section Area: 14 (Cv=0.78), 16 (Cv=0.89), 25 (Cv=1.39), 30 (Cv=1.67)
- Insulation: Class F
- Lube Cation: No Required
- Voltage Range: -15%~+10%
- Working Pressure: 1.5~8.0 kgf/c
- Response Time: 0.05s
Key Features:
- Efficient internal pilot motion pattern
- IP65 protection class for durability
- Alloy body material for reliability
- Wide voltage range compatibility
Package Includes: 1 x DC12V 1-4 inch 3 Way 2 Position Pneumatic Solenoid Valve for Water Air Gas
Images are for illustration only; actual product may vary.
