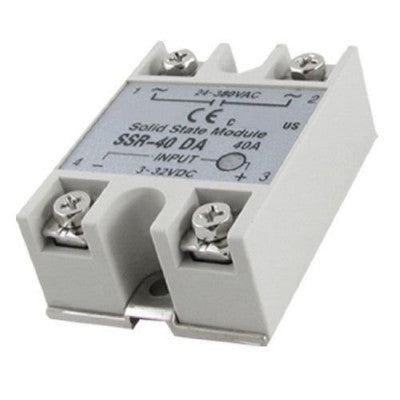

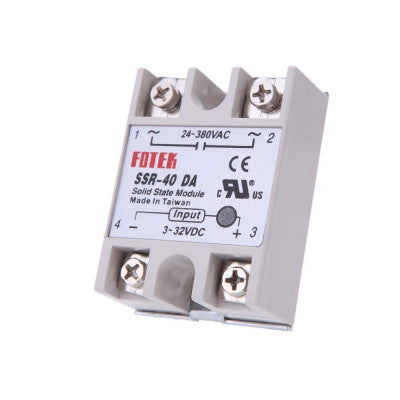

SSR-40DA Solid State Relay Module
A reliable and efficient solid state relay for controlling high-current AC loads.
- Model: SSR-40DA
- Dielectric Strength: Over 2.5kVA / 1 min
- Trigger Voltage (VDC): 3-32
- Switching Voltage (VAC): 24-380 @ 40A
- Operating Temperature Range (C): -20 to 85
- Material: ABS
- Length (mm): 45.5
- Width (mm): 62.5
- Height (mm): 24
- Weight (gm): 95
Features:
- Long service life and high reliability
- Reduced electromagnetic interference
- Compact size for maximum simplicity
A solid state relay (SSR) like the SSR-40DA allows you to control high-current AC loads using lower voltage DC control circuitry. SSRs offer advantages over mechanical relays, such as the ability to be switched by lower voltage and current, faster switching speeds, and longer lifespan due to no moving contacts. The SSR-40DA can handle current loads up to 40A with a 3-32V DC input and zero cross trigger control method. It features four screw terminals for easy connection and a protective plastic cover.
Package includes: 1 x SSR-40DA Solid State Relay Module
* Images are for illustration only; actual product may vary.
