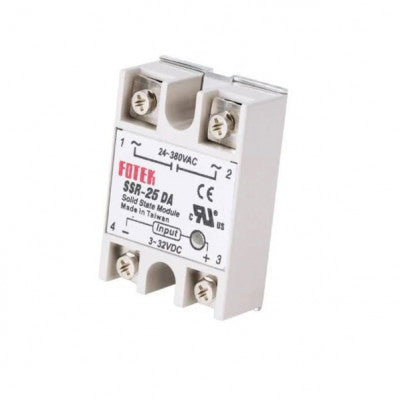

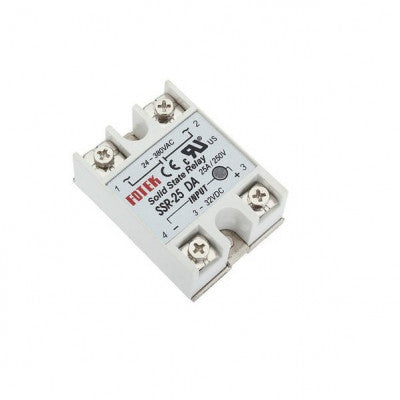

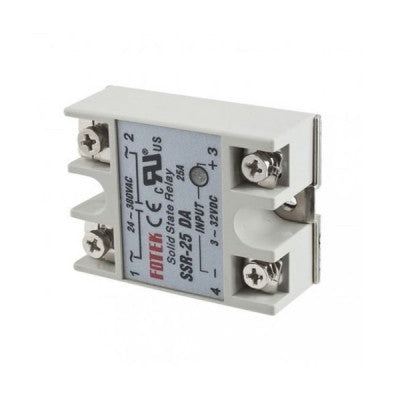

DC To AC SSR-25DA Solid State Relay Module 3-32VDC/24-380VAC 25A
A solid-state relay (SSR) for controlling high-current AC loads with low-voltage DC circuitry.
- Model: SSR-25DA
- Rated Load Current (A): 25
- Trigger Voltage (VDC): 3-32
- Switching Voltage (VAC): 24-380@25A
- Color: Light Gray

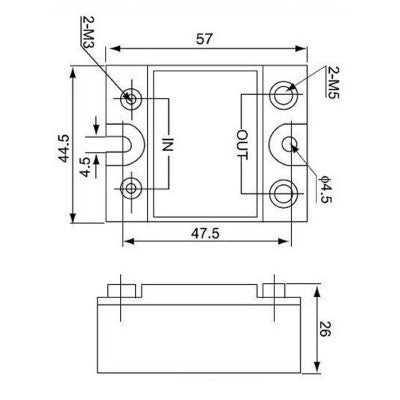

- Dimensions (LxWxH) mm: 60 x 45 x 24
- Weight (gm): 92
Features:
- Long service life and high reliability
- Reduced electromagnetic interference
- Highly reliable, compact size
A solid-state relay (SSR) like the SSR-25DA can be switched by a much lower voltage and current compared to mechanical relays. With no moving contacts, it offers faster switching and longer durability. This SSR can handle current loads up to 25A with a 3-32V DC input and zero cross trigger control method. It comes with four screw terminals for ring or fork connectors and a protective plastic cover.
Package includes:
- 1 x DC To AC SSR-25DA Solid State Relay Module 3-32 VDC /24-380VAC 25A
Images are for illustration only; actual product may vary.
