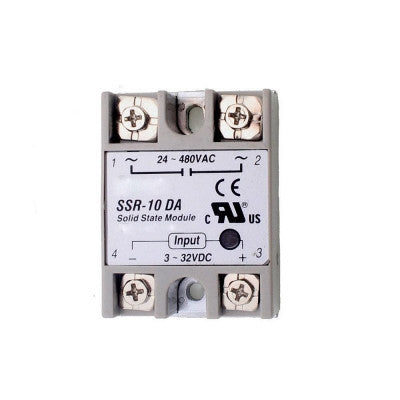

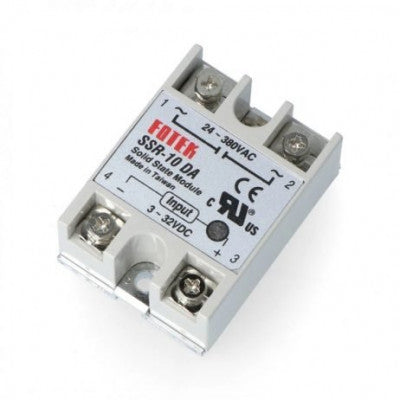

DC To AC SSR-10DA Solid State Relay Module 3-32VDC/24-380VAC 10A
A solid-state relay (SSR) for controlling high-current AC loads with low-voltage DC circuitry.
- Model: SSR-10DA
- Rated Load Current (A): 10
- Trigger Voltage (VDC): 3-32
- Switching Voltage (VAC): 24-380 @ 10A
- Color: Light Gray

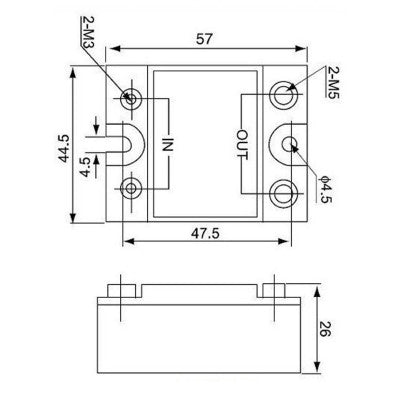

- Length (mm): 60
- Width (mm): 45
- Height (mm): 24
- Weight (gm): 92
Features:
- Long service life and high reliability
- Reduced electromagnetic interference
- Highly reliable, compact size
A solid-state relay (SSR) like the SSR-10DA offers advantages over mechanical relays. It can be switched by a much lower voltage and current, and without moving contacts, it can be switched faster and for longer periods without wearing out. This SSR can handle current loads up to 10A with a 3-32V DC input and zero cross trigger control method. Equipped with four screw terminals and a protective plastic cover.
Package includes:
- 1 x DC To AC SSR-10DA Solid State Relay Module 3-32 VDC /24-380VAC 10A
Images are for illustration only; actual product may vary.
