Mini DC-DC Step-Down Voltage Converter Module
Supports 5-12V input and 3.3V output with protection features
- Input Voltage: 5-12V
- Input Mode: Soldering
- Output Voltage: 3.3V
- Maximum Output Current: 3A
- Maximum Conversion Efficiency: 97.5%
- Full Load Temperature: 30°C
- Switching Frequency: 500KHz
- Voltage Regulation: 0.5%
- Dynamic Response Speed: 5% 200uS
Features:
- Improve conversion efficiency
- Small size, Compact Size
- Input with reverse polarity protection diode
- Output overvoltage protection
This mini DC-DC step-down voltage converter module supports input voltages ranging from 5V to 12V and provides a stable 3.3V output. It comes with input polarity reverse protection, output overvoltage protection, and short circuit protection. The module utilizes synchronous rectification technology, ensuring an ultra-high power conversion efficiency of up to 97.5% to maximize the utilization of input power.

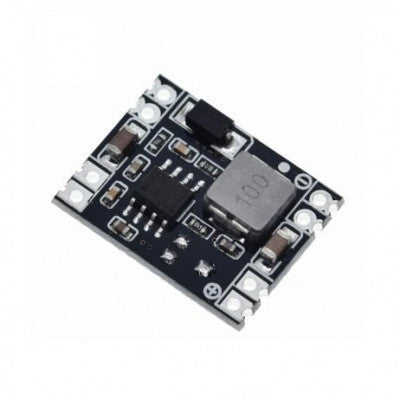

The package includes 1 x DC-DC 3A 5V-12V 24V to 3.3V Step-down Power Supply Module.
* Images are for illustration only; actual product may vary.
