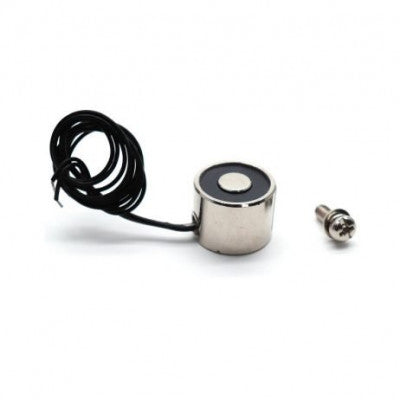

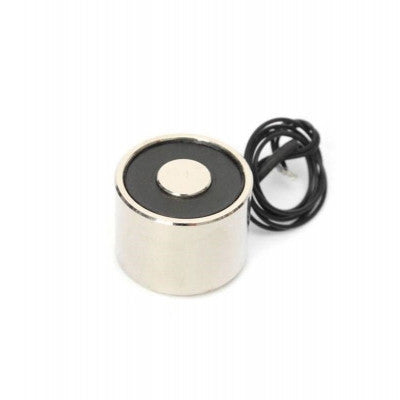

DDC24V P30/25 Electric Sucker Electromagnet 15KG
An efficient and compact electromagnet with high power and reliability.
- Model: 24V P30/25
- Holding/ Suction Force (KG): 15
- Operating Voltage (VDC): 24
- Max. Operating Current (mA): 0.17
- Operating Temperature Range (C): -20 to 120

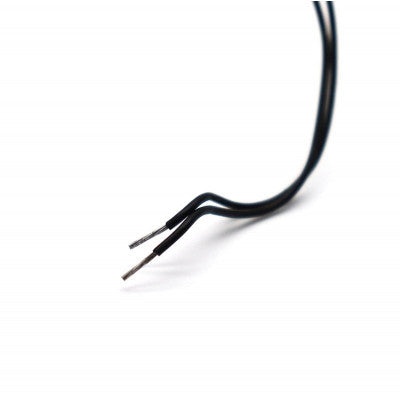

- Cable Length (cm): 30
- Bolt Size: M4
- Body Material: Mild Steel
- Dimensions (LxWxH) in mm: 20 x 15 (Dia. x Length)
- Weight (gm): 103
Features:
- High-power magnetic field with low energy consumption.
- Minimized residual magnetic force.
- Lightweight and compact design.
- Long life with high durability.
This DDC24V P30/25 Electric Sucker Electromagnet 15KG is designed with an iron core and a coil to attract magnetic substances using induced magnetic action by electric current. It offers high power and reliability, with a unique feature to release residual magnetism after de-energization.
Working Principle: An electromagnet energizes when connected to a DC voltage, creating a magnetic field. The magnetic flux density is proportional to the current magnitude. The electromagnet's polarity is determined by the current direction.
Precaution: Electromagnets must meet specific conditions for maximum suction, including good magnetic permeability of the object, proper power supply use, flat and clean object surface, and more.
Package Includes: 1 x DC24V P30/25 Electric Sucker Electromagnet 15KG, 1 x M4 Bolt with Washer
* Images are for illustration only; actual product may vary.
