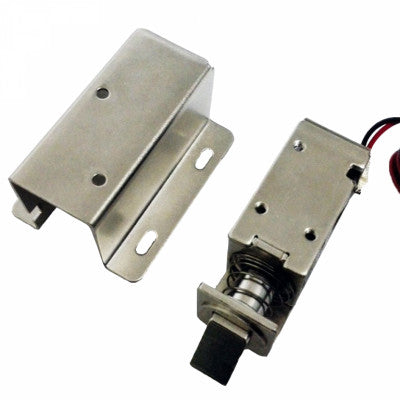

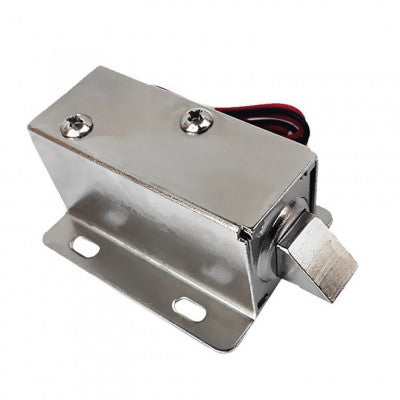

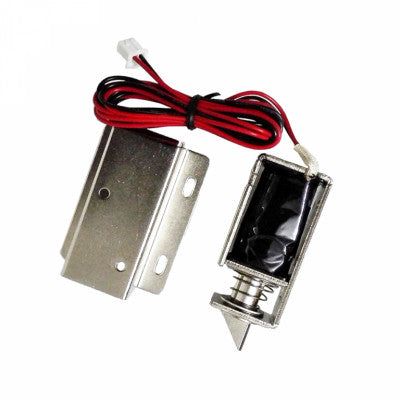

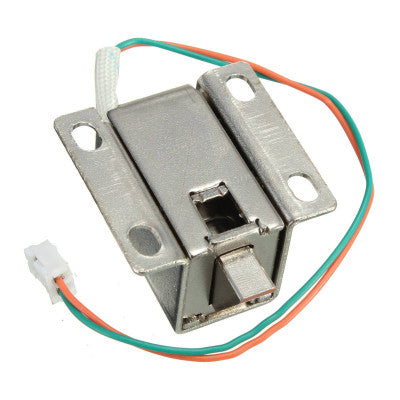

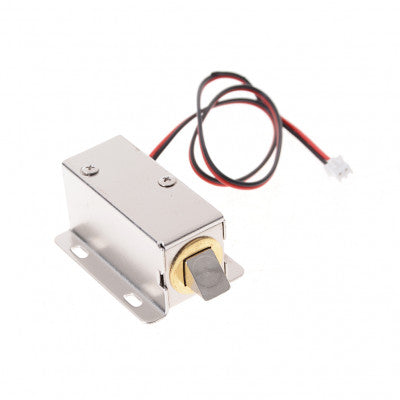

DC 12V Solenoid Electromagnetic Cabinet Door Lock
Securely lock sell-machines, storage shelves, and file cabinets with ease.
- Model: DC 12V Cabinet Door Lock
- Rated Operating Voltage (VDC): 12
- Rated Current (mA): 0.80A
- Power Consumption (Watt): 9.6
- Holding Force (N): 2.45
- Unlocking Time: 1 sec
- Body Material: Iron Metal
- Energized forms: Intermittent
- Cable Length (cm): 25
- Weight (gm): 150

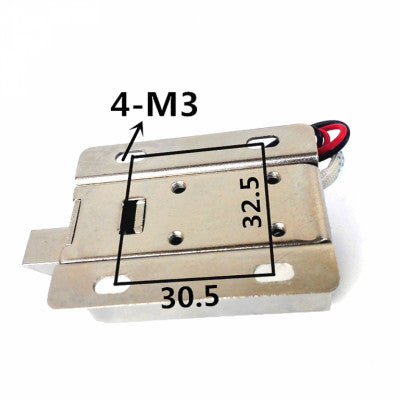

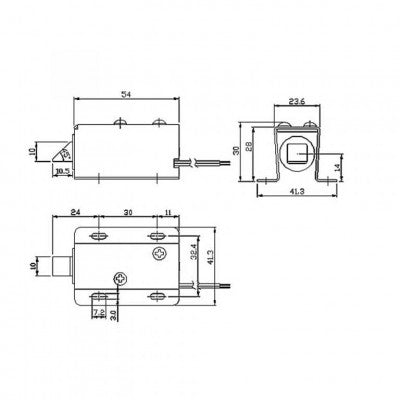

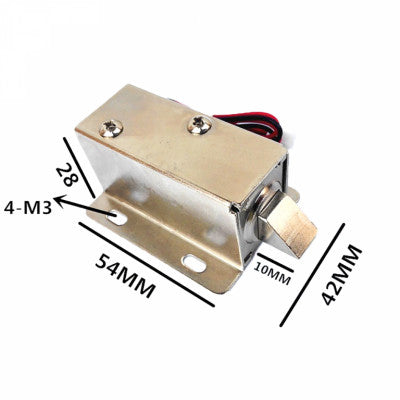

- Dimensions (mm) LxWxH: 54 x 42 x 28
Features:
- Iron Body Material
- High quality ultra-compact electric lock
- Rustproof, durable, safe, convenient to use
- Suction tightly sucks the iron, thus locking the door
This electromagnetic cabinet door lock is designed with an anti-theft and shockproof mechanism, making it superior to other locks. The hidden emergency unlocking feature ensures safety in critical situations. Simply connect the wires, and the electric lock can efficiently control door access upon power availability.
Note: Take care of polarity while making the connection without a connector (i.e., Red wire should be connected to the positive and Black wire to negative).
Package Includes: 1 x DC 12V Solenoid Electromagnetic Cabinet Door Lock
* Images are for illustration only; actual product may vary.
