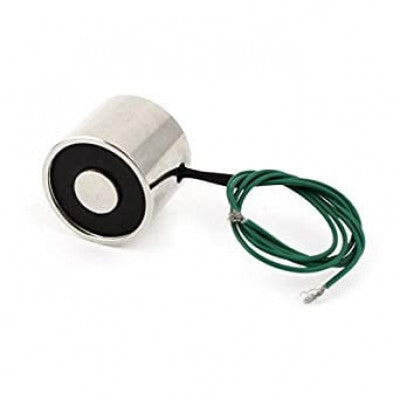

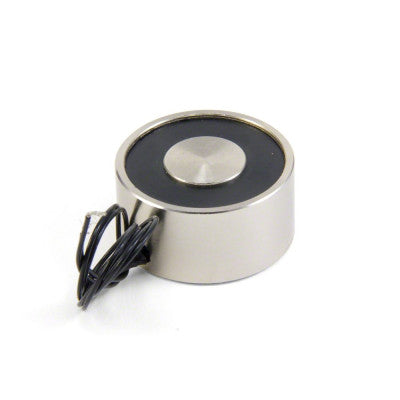

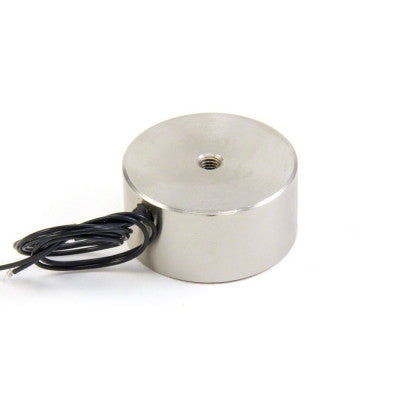

DC 12V KK-P40/25 15 KG Lifting Solenoid Degaussing Electromagnet
An efficient and reliable electromagnet for demagnetizing and degaussing applications.
- Model: DC 12V KK-P40/25
- Holding/ Suction Force (KG): 15
- Operating Voltage (VDC): 12
- Max. Operating Current (mA): 800
- Power Consumption (Watt): 9
- Operating Temperature Range (C): -20 to 120
- Cable Length (cm): 15
- Bolt Size: M5
- Body Material: Mild Steel
- Dimensions (LxWxH) in mm: 40 x 26 (Diameter x Length)
- Weight (gm): 214
Features:
- High-power magnetic field with low energy consumption
- Minimized residual magnetic force
- Lightweight and compact design
- Long life with high durability
This DC 12V KK-P40/25 15 KG Lifting Solenoid Degaussing Electromagnet is designed with an iron core and coil to attract magnetic substances when an electric current is applied. It efficiently demagnetizes objects and eliminates data on various media. The electromagnet's polarity is determined by the current direction, allowing for precise magnetic field control.
For maximum suction, ensure proper power supply usage and clean, flat objects. The electromagnet is suitable for automation applications like assembly lines and sorting machines. It is designed to release residual magnetism effectively and is built for high reliability and durability.
Package Includes:
- 1 x DC 12V KK-P40/25 15 KG Lifting Solenoid Electromagnet
- 1 x M5 Bolt with Washer
*Images are for illustration only; actual product may vary.
