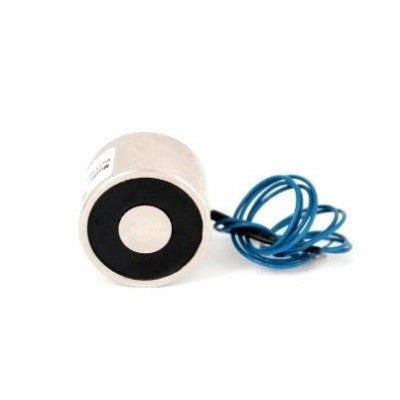

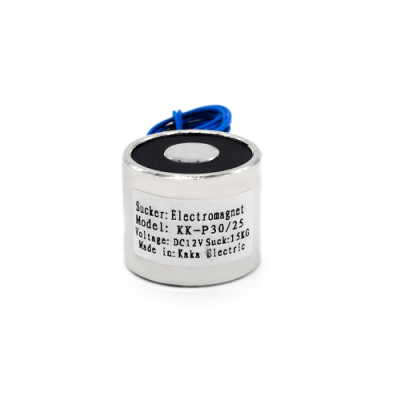

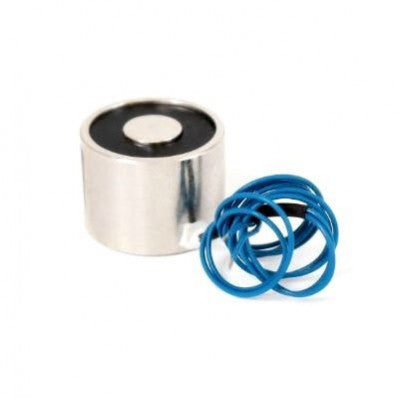

DC 12V KK-P30/25 15KG Lifting Solenoid Electromagnet
An efficient and reliable electromagnet for high-power magnetic applications.
- Model: DC 12V KK-P30/25
- Holding/ Suction Force (KG): 15
- Operating Voltage (VDC): 12
- Max. Operating Current (mA): 300
- Power Consumption (Watt): 3
- Operating Temperature Range (C): -20 to 120
- Cable Length (cm): 28
- Bolt Size: M4
- Body Material: Mild Steel

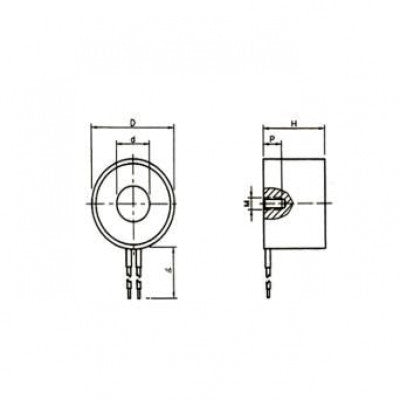

- Dimensions (LxWxH) in mm: 30 x 25 (Dia. x Length)
- Weight (gm): 98
Features:
- High-power magnetic field with low energy consumption.
- Minimized residual magnetic force.
- Lightweight and compact design.
- Long life with high durability.
This DC 12V KK-P30/25 15KG Lifting Solenoid Electromagnet is designed with an iron core and a coil to attract magnetic substances when an electric current is applied. It offers high power and reliability, with a unique feature to release residual magnetism after de-energization.
Working Principle: An electromagnet energizes when connected to a DC voltage, creating a magnetic field. The polarity is determined by the current direction, with the north pole following the right-hand rule.
Precaution: Electromagnets require proper conditions for maximum suction, including magnetic permeability of the object, rated voltage, cleanliness, thickness, and proximity.

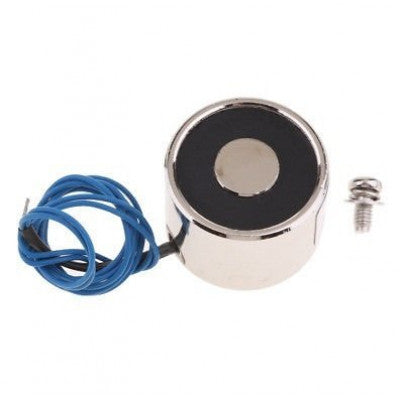

Package Includes: 1 x DC 12V KK-P30/25 15KG Lifting Solenoid Electromagnet, 1 x M4 Bolt with Washer
* Images are for illustration only; actual product may vary.
