Solenoid Valve
A 2-way solenoid valve for water purifiers, operating on 12V-24V DC.
- Material: Metal & plastic
- Dimensions (L x B x H): 3 cm x 3 cm x 6 cm
- Weight: 100 g
- Brand: Hero
- Input Supply: 12V-24V DC
- Solenoid valve size: 1/4 inch
- Orifice: 2.5mm
- Pressure range: 0~120 PSI (0~0.8MPA)
- Temperature range: 0 ~ 80°
Features:
- 24 V DC
- 0-120 PSI
- 2.5 mm Orifice
- Easily replaceable
The working of Solenoid Valve is similar to that of a normal valve. The only difference here is that the Solenoid Valve only operates when it is supplied with DC Voltage. This is a 2-way Solenoid Valve. It has 2 connections, one for liquid inlet and the other for the outlet. It accepts DC voltage of 24V and also works on 12V DC. When there is input voltage on the Solenoid Terminals, it operates and opens up, allowing the liquid to flow from the inlet to the outlet. The Solenoid has push-fit connectors on each side, allowing direct insertion of the pipe or nozzle without worrying about leaking.
Compatible with all models of domestic water purifiers, this solenoid valve is designed for automatic control of water on/off. Easily fitting in all models, it ensures no breaking or leaking during movement and installation.
Package Includes:

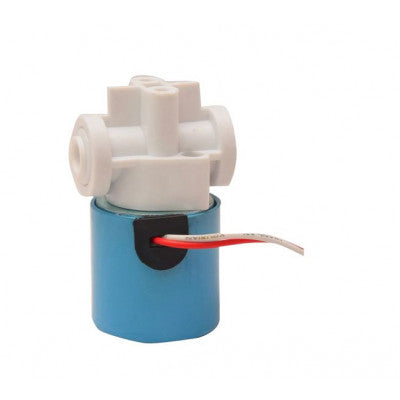

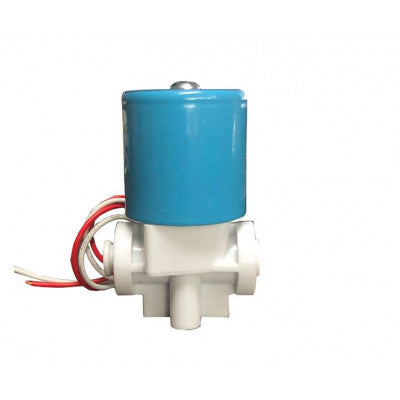

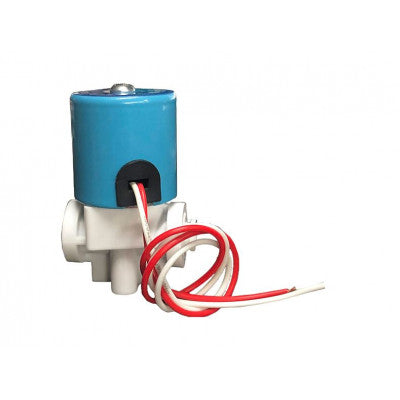

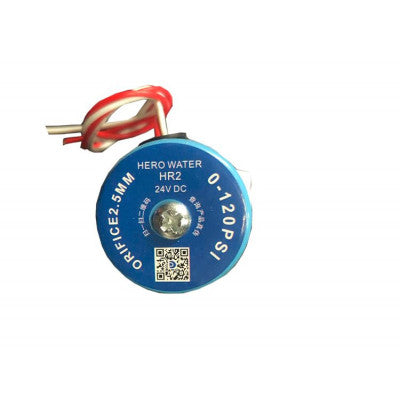

- 1 x DC 12-24V Hero Water HR2 Solenoid Valve
*Images are for illustration only; actual product may vary.
