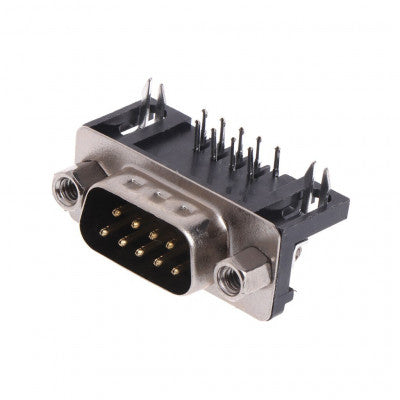

DB9 Male Right Angle Connector
The most common type of electrical connector for computer and communication devices.
- Connector Type: DB-9
- Connector: Male
- Voltage Rating (V): 250V AC
- Current Rating (A): 5
- Insulation Resistance (M): 1000
- Contact Resistance: 20m
- Operating Temperature Range (C): -55 to 125
- Material: Metal and plastic
- Length (mm): 30
- Width (mm): 16
- Height (mm): 18
- Weight (gm): 6
Top Features:
- Nickel-plated terminals
- Gold plated pins
- Good quality
- Pins at a right angle for PCB mounting
The DB9 connector is part of the D-sub miniature (D-sub) connector plug and socket family. The terminals of this connector are bent at a right angle, and it is designed to work with the EIA/TIA 232 serial interface standard. DB9 connectors were commonly used for serial peripheral devices like keyboards, mice, and joysticks. Today, the DB9 has mostly been replaced by more modern interfaces such as USB and Firewire.
Applications include network ports, computer video output, game controller ports, and linear and rotary encoders in industries.
Package Includes: 1 x DB9 Male Right Angle Connector - 9 Pin - PCB Mount
* Images are for illustration only; actual product may vary.
