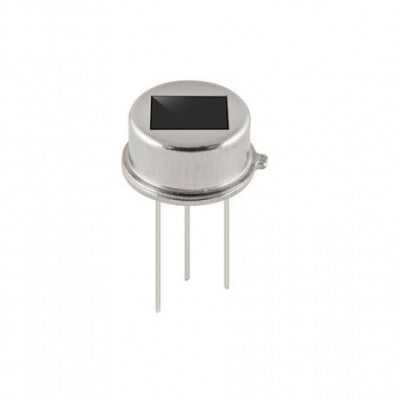

D204S 2 Elements Pyroelectric Infrared Analog PIR Sensor
Enhanced EMI immunity for security systems
- Encapsulation Type: TO-5
- IR Receiving Electrode: 21mm, 2 elements
- Window Size: 43mm
- Spectral Response: 514m
- Transmittance: 75%
- Output Signal: 3500mVp-p
- Sensitivity: 3300V/W
- Detectivity (D*): 1.4 x 10^8 cmHz^1/2/W
- Noise: <70mVp-p
- Output Balance: <10%
- Offset Voltage: 0.3-1.2V
- Supply Voltage: 3-15V
- Operating Temp: -30-70°C
- Weight: 20 gm
Top Features:
- Enhanced EMI immunity
- Custom design available
- High cost-performance ratio
- Low power consumption
The D204S 2 Elements Pyroelectric Infrared Analog PIR sensor is widely used in security systems due to its enhanced immunity to EMI. It is suitable for applications such as intelligent security burglar alarms, wireless infrared detection alarms, and more. When an intruder enters the detection area, it sends an alarm signal to the control panel.
Package Includes: 1 x D204S 2 Elements Pyroelectric Infrared Analog PIR Sensor
* Images are for illustration only; actual product may vary.
