D203B with Big Angle Windows
Passive Infrared Sensor Widely Used in Light Sensors
- Encapsulation Type: TO-5
- IR Receiving Electrode: 21mm, 2 elements
- Window Size: 53.8mm
- Spectral Response: 514m
- Transmittance: 75%
- Output Signal [Vp-p]: 3500mV
- Sensitivity: 3300V/W
- Detectivity (D*): 1.4 x 10^8 cmHz^1/2/W
- Noise [Vp-p]: <70mV
- Output Balance: <10%
- Offset Voltage: 0.3-1.2V
- Supply Voltage: 3-15V
- Operating Temp: -30-70°C
- Storage Temp: -40-80°C
- Shipment Weight: 0.01 kg
- Shipment Dimensions: 5 x 3 x 1 cm
Top Features:
- Large detection angle
- Custom design available
- Higher cost-performance ratio
D203B with big angle windows is equipped with dual compensated sensing elements to suppress interference from temperature variation. It offers high sensitivity, low noise, and reliable performance, making it ideal for light sensors. Our sensor is developed with over 15 years of expertise in international technology and Hybrid IC techniques.

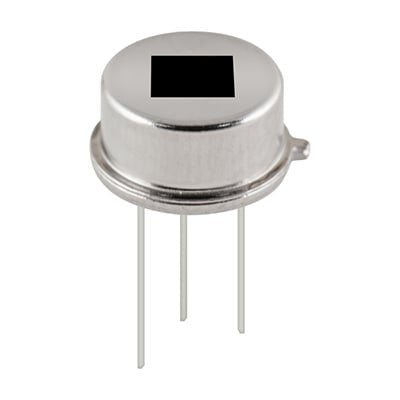

Package Includes: 1 x D203B Dual Elements Passive Infrared PIR Sensor Used for Alarm System
* Images are for illustration only; actual product may vary.
