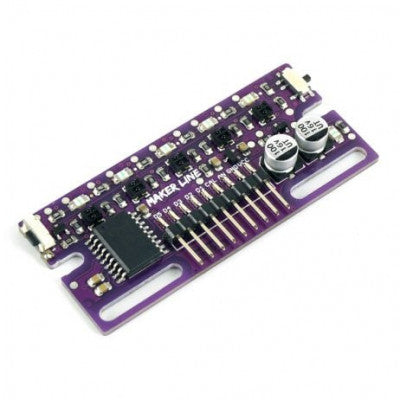

Maker Line Sensor
A versatile sensor for line following robots and AGVs
- Operating Voltage: DC3.3V and 5V compatible (With reverse polarity protection)
- Recommended Line Width: 13mm to 30mm

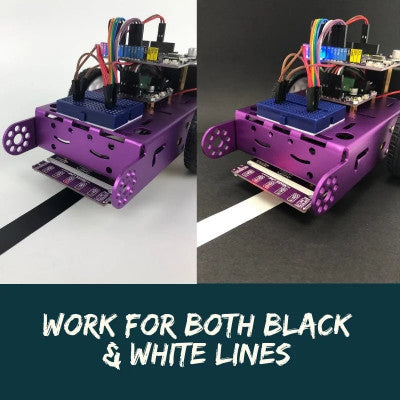

- Selectable Line Color: Light or Dark
- Sensing Distance (Height): 4mm to 40mm (Vcc = 5V, Blackline on a white surface)
- Sensor Refresh Rate: 200Hz
- Easy Calibration Process
- Dual Output Types: 5 x digital outputs, 1 x analog output
- Supports: Arduino, Raspberry Pi, etc.
Top Features:

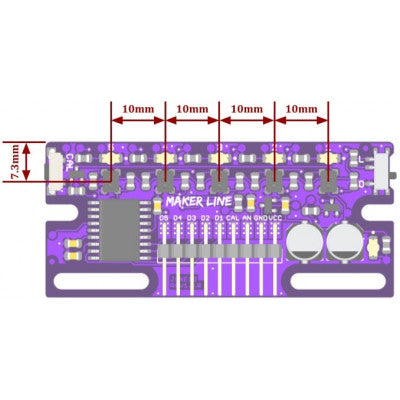

- 5 x IR sensors array for precise line tracking

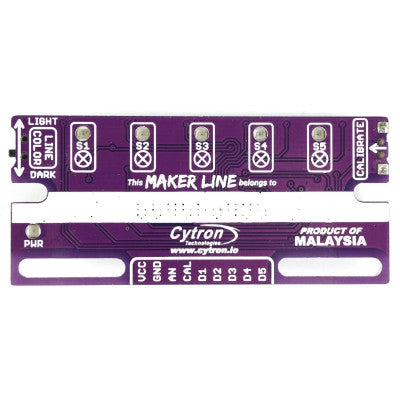

- Calibration button for simplified setup
- Dual outputs for flexibility
- High-resolution analog output for accuracy

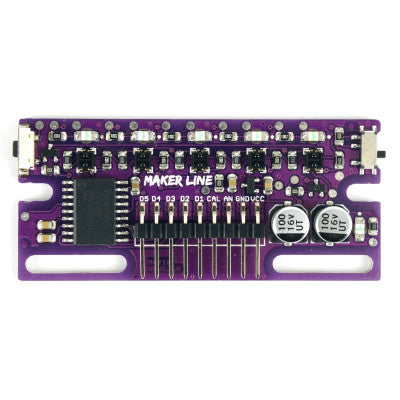

Maker Line is equipped with 5 x IR sensors array, allowing it to track lines from 13mm to 30mm in width. The sensor offers selectable light or dark line color options. Calibration is made easy with a simple button press and sweep across the line. The calibration data is stored in EEPROM for convenience.
The sensor supports dual outputs: 5 x digital outputs for individual sensor states and 1 x analog output for line position. The analog output provides higher resolution, ideal for applications requiring high accuracy like PID-controlled line following robots.

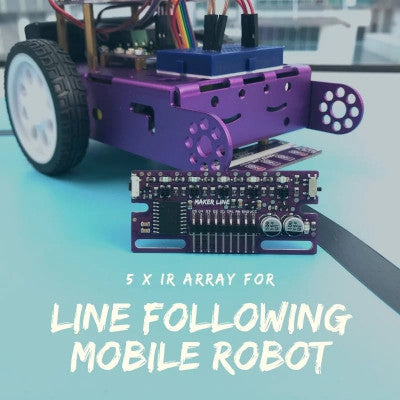

Applications include Line Following Mobile Robots and Automated Guided Vehicles (AGVs).
Package Includes:
- 1 x MAKER-LINE
- 2 x PCB Stand Screw and Nut 5mm (2pcs)
- 2 x PCB Stand Screw and Nut 10mm (2pcs)
- 2 x M3 Screw 4mm (2pcs)
- 2 x M3 Nut (2pcs)
Images are for illustration only; actual product may vary.
