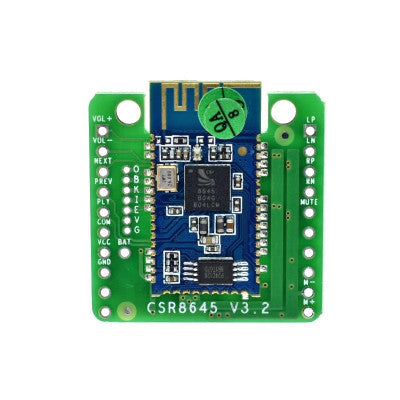

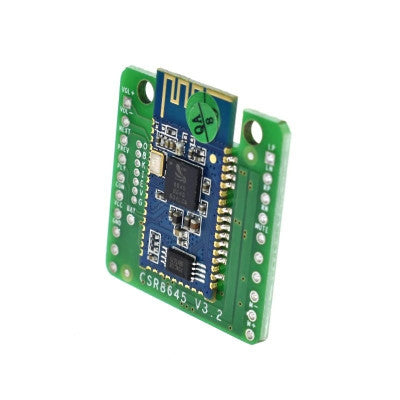

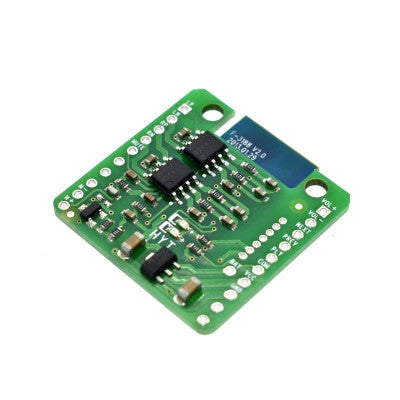

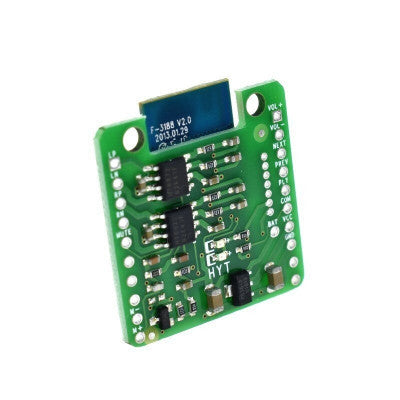

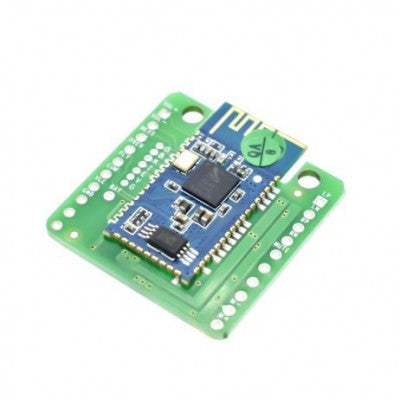

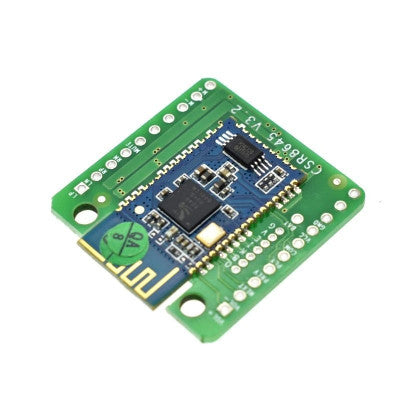

CSR8645 Wireless 4.0 Amplifier Board
Connects to two mobile phones, supports call feature, low power consumption.
- Channels: 2
- Maximum Power Per Channel: 5W
- Upper PCB Dimension (mm): 27 x 14 x 1
- Lower PCB Dimension (mm): 29 x 29 x 1.5
- Spacing between each edge sided pins of lower PCB (mm): 2
- Weight(g): 4
Top Features:
- Connects to two mobile phones
- Supports call feature
- Low power consumption
- Compact size

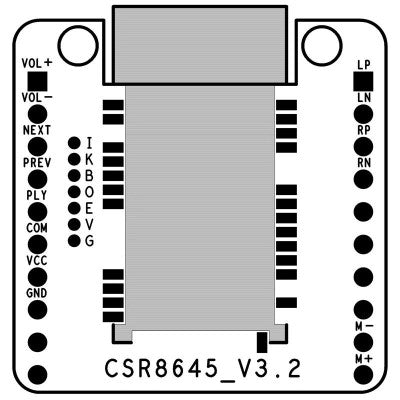

The module can be connected to two mobile phones or Bluetooth transmitters. The first phone pairing is automatic. It Supports Call Feature. CSR8645 has lower power consumption when the power turned on. It has no DC isolated power for the battery. COM is the common point of the key, the other end of the key are then VOL +, VOL-, PREV, NEXT, PLY. M + and M- are positive and negative of the microphone. They are mainly used in Bluetooth headsets.
Note: Battery is not included.
Package Includes: 1 x CSR8645 Wireless 4.0 Amplifier Board
* Images are for illustration only; actual product may vary.
