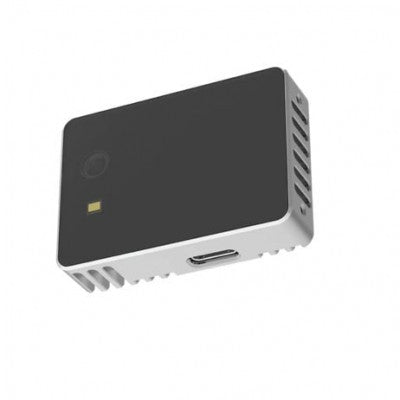

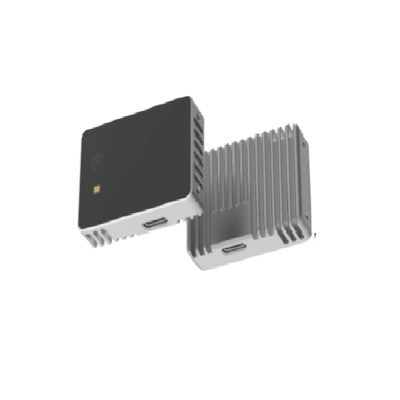

CS20 Dual-Resolution 3D TOF Solid-state LiDAR
Accurate 3D perception tool with millimeter-level measurement accuracy
- Resolution: 640*480
- Measurement Range: 0.1-5m@indoorwhite wall
- Power Consumption: 1.2W
- Operating Systems: Linux, Windows, ROS, Android
- Interface: Type C
- Output: Phase information
- Applications: Robot SLAM, Volume measurement, Face recognition, Somatosensory interaction, 3D modeling, Security monitoring, People counting
Top Features:
- Millimeter-level measurement accuracy
- 640*480 resolution
- High dynamic measurement range
- Depth and signal amplitude timing synchronization

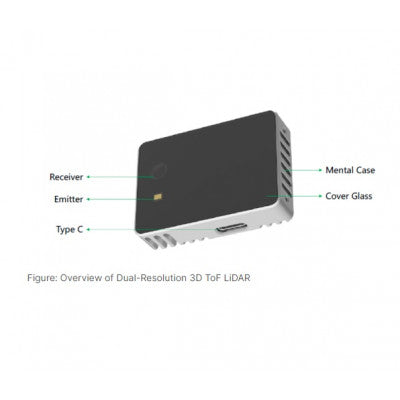

This CS20 Dual-Resolution 3D TOF Solid-state LiDAR is equipped with a ToF image sensor with a resolution of 640*480 and uses ToF technology to capture three-dimensional information of objects and space. It can accurately measure distances up to 5m while consuming an average of only 1.2W of power. This makes it a convenient and efficient tool for 3D perception applications. The LiDAR is compact and lightweight and compatible with multiple operating systems, including Linux, Windows, ROS, and Android. It is powered and outputs phase information through a Type C interface. And users can obtain depth, point clouds, and other data via the SDK. It is widely used in various applications such as robot SLAM, volume measurement, face recognition, somatosensory interaction, 3D modeling, security monitoring, and people counting.
Compared to 3D structured-light cameras, ToF depth cameras offer several advantages, such as a small blind spot, linearly related measurement errors that are not affected by distance or scene texture, fast imaging speed, and strong environmental adaptability. Many commercially available ToF depth cameras are currently afflicted by relatively high costs and limited depth resolution, which can lead to less precise depth information capture. But this cost-effective camera sensor not only has excellent 3D imaging capabilities but also achieves millimeter-level measurement accuracy.
* Images are for illustration only; actual product may vary.
