CP2102 USB to UART Bridge
A complete plug and play interface solution with royalty-free drivers
- Integrated USB transceiver: no external resistors required
- Integrated clock: no external crystal required
- Internal 1024-byte programmable ROM for: vendor ID, product ID, serial number, power descriptor, release number, and product description strings
- On-chip power-on reset circuit
- Spec name: Value
- Parameter: Min Max Unit
- Ambient Temperature under Bias TBIAS: -55 125 ºC
- Storage Temperature TSTG: -65 150 ºC
- Voltage on VDD with respect to GND VDD: -0.3 4.2 V
- Maximum Total Current through VDD and GND: 500 mA
- Maximum Output Current sunk by RST or any I/O pin: 100 mA

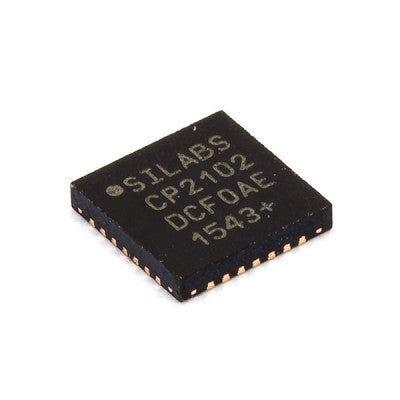

The CP2102 USB to UART Bridge provides a complete plug and play interface solution that includes royalty-free drivers. This USB 2.0 compliant device includes 0 digital I/O pins and is available in a 5x5 mm QFN28 package.
For more information, please refer to the CP2102 IC Datasheet.
* Images are for illustration only; actual product may vary.
