N Connectors for Industry-Standard Cables
Designed for aerospace, defense, medical, commercial, telecommunications, data/communications, and industrial applications.
- Brand: ElecBee
- Orientation: Straight
- Gender: Male
- Mounting Type: Cable
- Termination Style: Solder Type
- Polarity Standard
- Body Material: Copper
- Body Plating: Nickel Plating
- Impedance: 50 ohms
- Shield Termination: Crimp
Top Features:
- DC to 11GHz Frequency Range
- 50 ohm Impedance
- Threaded Coupling Mechanism for Durability
- Medium Size for Various Applications
These connectors are designed to terminate industry-standard 50 ohm and 75-ohm cables, offering longevity, perfect design, and durable industry-grade standards and finish.
Main applications include aerospace and defense, medical equipment, commercial vehicle technology, telecommunications hardware, data/communications systems, and industrial communications.
Electrical Characteristics:
- Impedance: 50 ohm
- Frequency Range: 0~13 GHz
- VSWR: Straight type 1.3 max / R/A type 1.5 max
- Dielectric Withstanding Voltage: 2500 V rms
- Working Voltage: 1000 V rms
- Center Contact Resistance: 1.0 m (Milliohms max.)
- Outer Contact Resistance: 0.2 m (Milliohms max.)
- Insulation Resistance: 5 x 10 m (Megohms min.)
Mechanical Characteristics:
- Coupling: 5/8-24 thread
- Contact Retention: 6 lbs min.
- Coupling Nut Torque: 30 in-lbs. min.
- Durability (Mating): 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics:
- Temperature Range: -65°C ~ +125°C (PE Cable -40°C ~ +85°C)
- Vibration: MIL-STD-202 Meth.204
- Corrosion Resistance: MIL-STD-202 Meth. 101

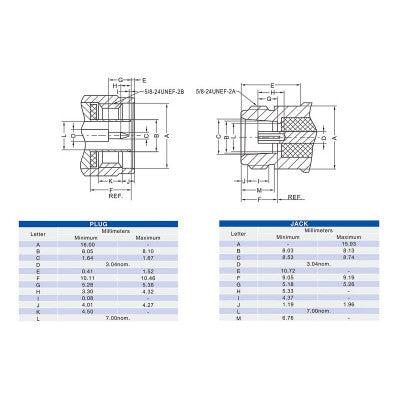

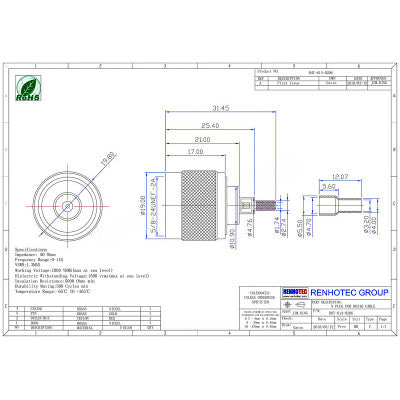

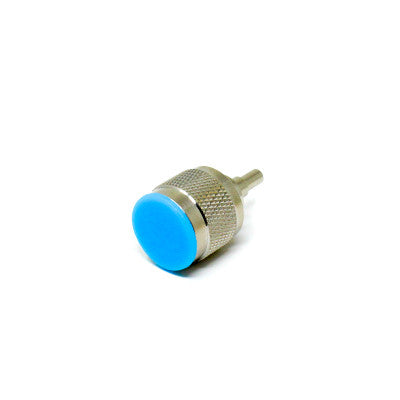

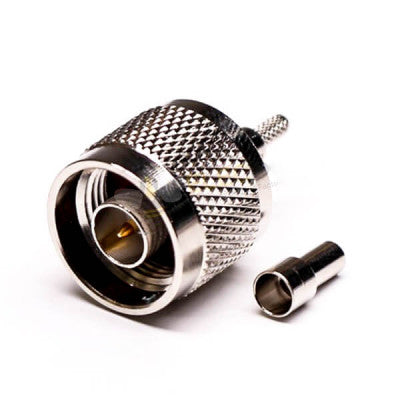

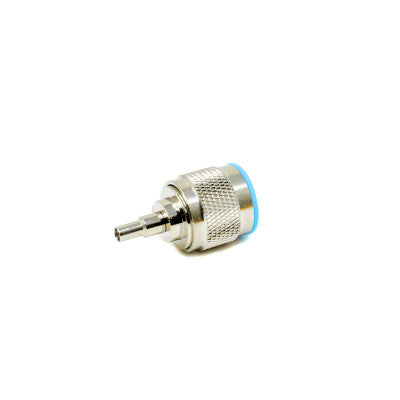

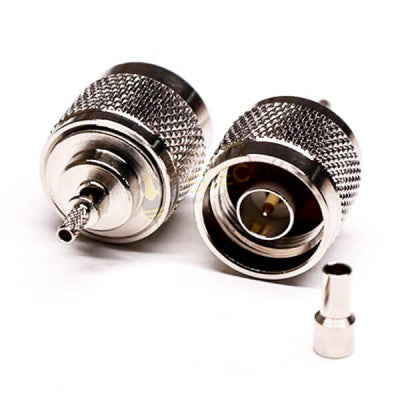

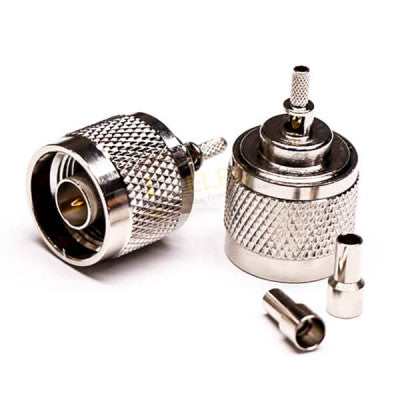

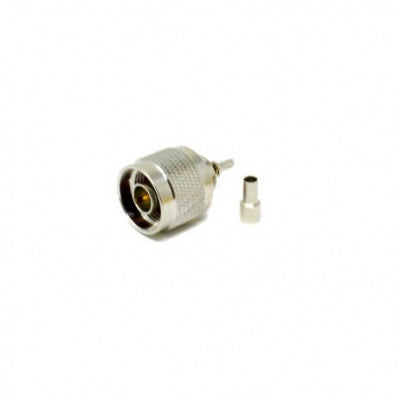

Package Includes: 1 x Coaxial Connector Male N-Type 180 Degree Crimp Type For Cable
*Images are for illustration only; actual product may vary.*
