CNC Shield V3.0
Build engraving machines, 3D printers, mini CNC and more with your Arduino.

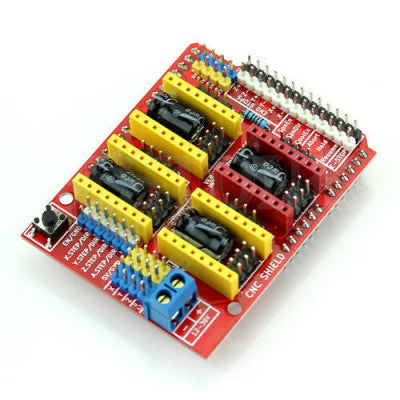

The CNC Shield V3.0 is designed to seamlessly integrate with an Arduino, requiring no external connections and wiring. This shield features four slots for stepper motor drive modules, each capable of driving one stepper motor. As each stepper motor can be controlled with just two IO pins on the Arduino, this shield allows you to save a significant amount of IO pins for other purposes. Add this shield to an Arduino UNO, install the GRBL firmware, and you're on your way to creating a DIY CNC engraving machine.
- Application: Small CNC routers, Carving Machines, 3D Printers, DIY Laser Cutters
- Stepper Motor Control: Supports up to 4 stepper motors
- IO Pins: Just 2 IO Pins required per motor
- Version: Latest Arduino CNC Shield Version 3.10
- Power: Runs on 12-36V DC
- Stepper Drivers: Compatible with removable A4988 and DRV8825 drivers
With its compact design, this shield supports PWM Spindle and direction pins, 4-Axis support, Coolant enable and allows the use of removable stepper drivers. It also features jumpers for setting Micro-Stepping for the stepper drivers. Stepper Motors can be connected with 4 pin molex connectors or soldered in place.
- Feature: Supports PWM Spindle and direction pins
- Feature: 4-Axis support
- Feature: Supports Coolant enable
- Feature: Allows for removable stepper drivers
- Feature: Includes jumpers for micro-stepping settings
- Feature: Offers compact design
