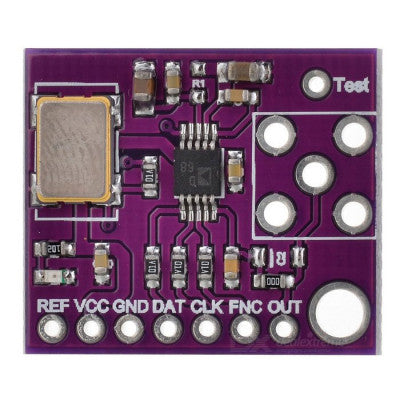

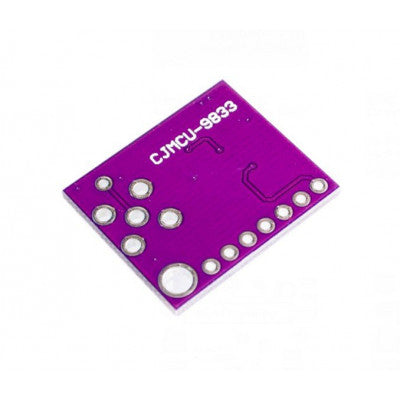

CJMCU-9833 AD9833BRMZ Programmable Sine Triangular Square Waveform Generator Module
A versatile waveform generator for frequencies up to 12.5MHz
- Working voltage: 2.3V-5.5V
- Working temperature range: -40°C to +105°C
- Onboard Crystal Frequency (MHz): 25
- Material: Metal and Plastic
- Model: AD9833BRMZ
- Dimensions (cm): 24 x 20 x 4
- Weight (gm): 2
Top Features:
- Frequency range: 0-12.5MHz
- Easy frequency adjustment
- High precision clock frequency
- Supports sine, triangle, and square wave signals
The CJMCU-9833 AD9833BRMZ Programmable Sine Triangular Square Waveform Generator Module is a versatile tool used in various applications such as liquid and gas flow measurement, sensing, sports, defect detection, test equipment, medical equipment, and scan clock generation. It features an onboard 25MHz crystal with high accuracy and supports multiple microcontrollers for easy integration.
With a working voltage range of 2.3V to 5.5V and a wide temperature range from -40°C to +105°C, this waveform generator is suitable for diverse environments. The module also includes high-speed amplifiers, low-pass filtering, and dual-channel output signals for added flexibility.

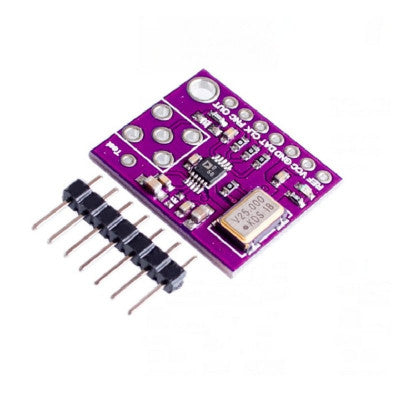

The package includes 1 x CJMCU-9833 AD9833BRMZ Programmable Sine Triangular Square Waveform Generator Module and 1 x Header set (Without Soldered).
Images are for illustration only; actual product may vary.
