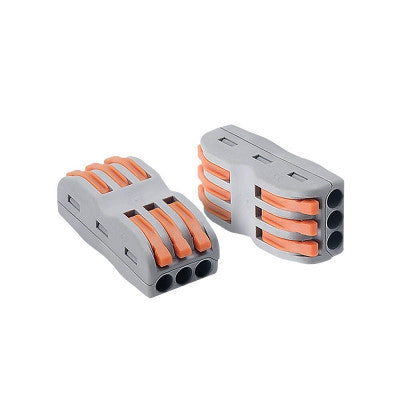

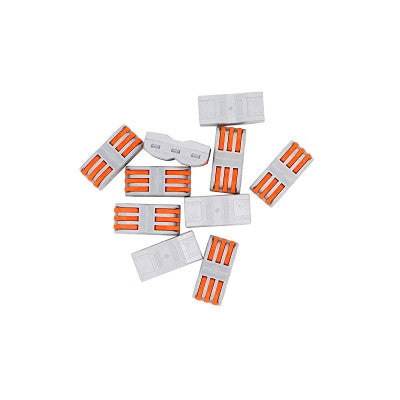

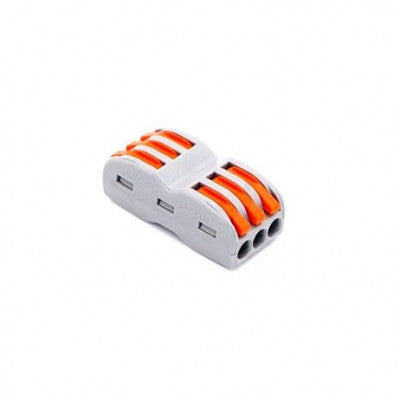

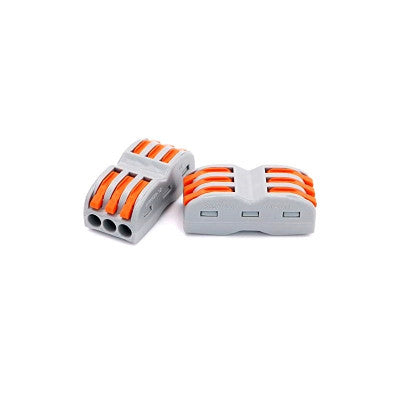

CH-813 0.08-2.5mm 2 Pole Wire Connector Terminal Block with Spring Lock Lever
Compact wire connector with spring lever for safe and efficient cable connection.
- Model: CH-813 SPL-3
- Rated Voltage (V): 250V/4KV
- Rated Current (A): 32
- Body Material: Modified Nylon (PA66)
- Contact Material: Stainless Steel
- Rated Power (W): 7 KW
- No. of Contact Points: 3
- Allowed Wire Size (AWG): 28 ~ 12
- Color: Grey+Orange
- Operating Temperature Range (C): -20 to 85
- Shipment Weight: 0.01 kg

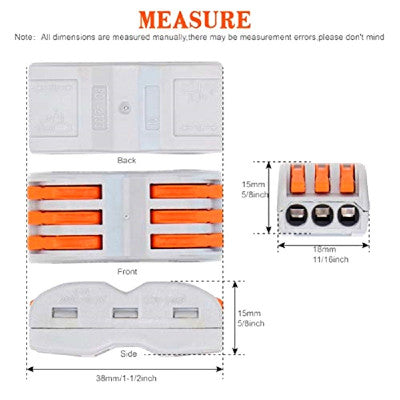

- Shipment Dimensions: 4 x 4 x 1 cm
Features:
- Compact design
- Easy to use
- Reliable connection
- Reusable
This connector comes with three line connections for Live, Neutral, and Earthing wires separately. It is suitable for single-strand hardwire with 0.08mm to 2.5mm² area or soft wire with 0.08mm to 4.0mm² area. It can handle a rated voltage of up to 400V and an electric current peak of 32A, resulting in a maximum power of 7KW.
The CH-813 connector is designed to be safe and efficient, minimizing the chances of errors during installation. It offers universal compatibility for joining braided and solid wires of different sizes, making it suitable for various household wiring applications.

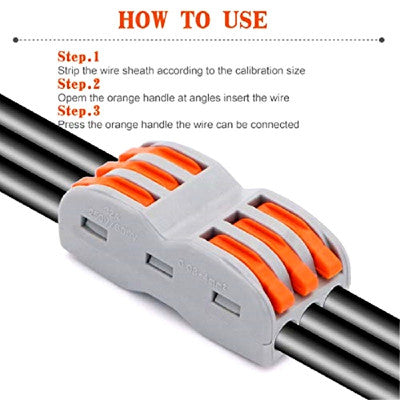

With its convenient spring lever mechanism, this connector allows for easy and secure wire connections without the need for twisting wires together. It is a practical solution for DIY enthusiasts and professionals working on electrical projects.
Package Includes: 1 x CH-813 0.08-2.5mm 3 Pole Wire Connector for 3 Wireline Splicing
* Images are for illustration only; actual product may vary.
