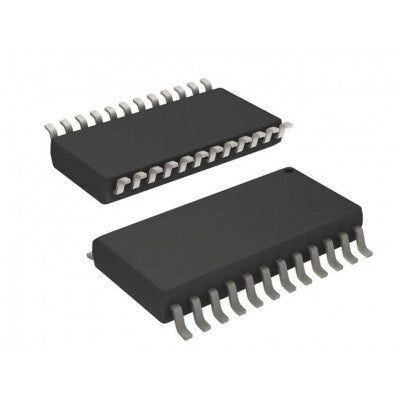

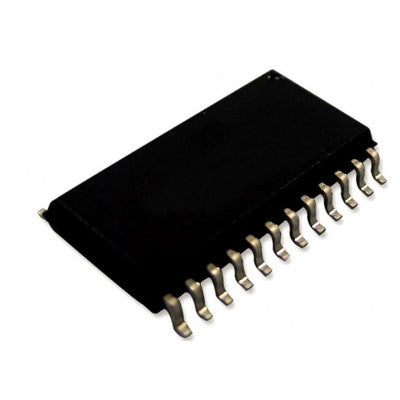

CD4067 CMOS Analog Multiplexers/Demultiplexers
Digitally controlled analog switches with low ON Impedance and internal address decoding.
- Supply Voltage: -0.5V to +20V
- Input Voltage: -0.5V to VDD +0.5V
- Storage Temperature: -65°C to +150°C
- Power Dissipation: 700 mW
- Lead Temperature: 265°C
- Operating Temperature Range: -55°C to +125°C
- DC Input Current: ±10mA
- Packaging: Braze Seal DIP: H4V, †H6M; Frit Seal DIP: H1Z, †HFN; Ceramic Flatpack: H4P, †H4P
Top Features:
- High Voltage Types (20V Rating)
- Low ON Resistance: 125? (typ) Over 15Vp-p Signal Input Range
- Matched Switch Characteristics: RON = 5? (typ) for VDD - VSS = 15V
- Binary Address Decoding on Chip
The CD4067 is a 16-channel multiplexer with four binary control inputs (A, B, C, D) and an inhibit input, enabling selection of one switch from any combination of inputs. An inhibit input with logic "1" turns off all channels.
It is a versatile device suitable for applications like analog and digital multiplexing, A/D and D/A conversion, and signal gating. When used as demultiplexers, the "CHANNEL IN/OUT" terminals are the outputs, and the "COMMON OUT/IN" terminals are the inputs.
With very low quiescent power dissipation under all digital control input and supply conditions, the CD4067 ensures efficient performance.
For detailed specifications, refer to the CD4067 SMD Data Sheet.
* Images are for illustration only; actual product may vary.
