CD4050 Non-Inverting Hex Buffers
Logic-level conversion with one supply voltage
- Part number: CD4050
- Technology Family: CD4000
- VCC (Min) (V): 3
- VCC (Max) (V): 18
- Channels (#): 6
- Input type: Standard CMOS
- Output type: Push-Pull
- Features: Standard speed (tpd > 50ns), Input clamp diode
- IOL (Max) (mA): 18
- IOH (Max) (mA): -3.1
- Data rate (Mbps): 16
- Rating: See Data Sheet
- Package Group: PDIP|16
Features:
- Non-Inverting High Sink Current for Driving 2 TTL Loads
- High-to-Low Level Logic Conversion
- 100% Tested for Quiescent Current at 20 V
- Maximum Input Current of 1 µA at 18 V
The CD4050 devices are non-inverting hex buffers that facilitate logic-level conversion using only one supply voltage (VCC). They are suitable for CMOS to DTL or TTL conversions and can directly drive two DTL or TTL loads. With VCC at 5 V, VOL at 0.4 V, and IOL at 3.3 mA, these devices offer reliable performance.
For more details or bulk pricing inquiries, please contact our sales team directly at sales02@thansiv.com or call +91-8095406416.

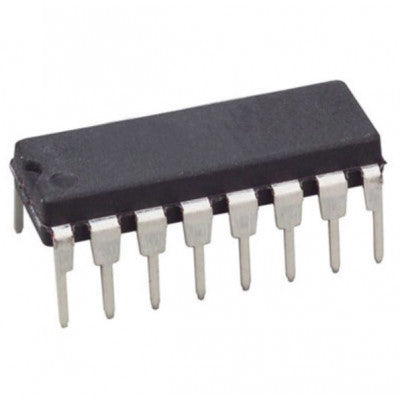

*Images are for illustration only; actual product may vary.
