CD4034 Static Eight-Stage Register
A versatile register for parallel and serial data transfer
- Part Number: CD4034B
- Technology Family: CD4000
- VCC (Min): 3V
- VCC (Max): 18V
- Voltage (Nom): 10V
- F @ nom voltage (Max): 8MHz
- ICC @ nom voltage (Max): 0.3mA
- tpd @ nom Voltage (Max): 240ns
- IOL (Max): 15mA
- IOH (Max): -1.5mA
- 3-state output: No
- Operating Temperature Range: -55°C to 125°C
Top Features:
- Bidirectional parallel data input
- Parallel or serial inputs/parallel outputs
- Asynchronous or synchronous parallel data loading
- Data recirculation for register expansion

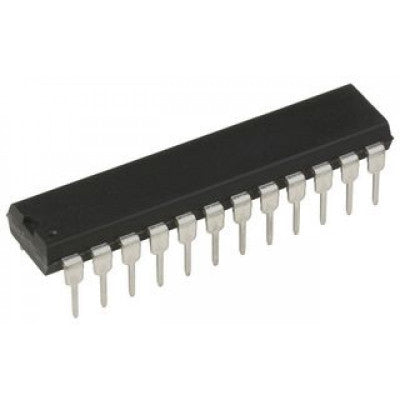

The CD4034 is a static eight-stage parallel-or serial-input parallel-output register. It provides multiple functionalities including bidirectional data transfer between buses, serial to parallel conversion, and more. The register stages are D-type master-slave flip-flops with separate clock inputs for synchronous or asynchronous data transfer.
With 16 bidirectional parallel data lines, the CD4034 offers flexibility in data handling. It can operate in the DC-to-10 MHz range at VDD = 10V with standardized output characteristics. Expansion is easy with cascading CD4034 packages for multi-register setups.
Designed for efficiency and reliability, the CD4034 meets JEDEC standards and offers a wide range of applications including register systems, counters, and code generators.
For detailed technical information, refer to the CD4034 IC Datasheet.
