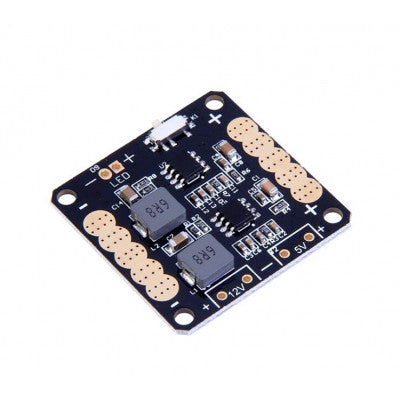

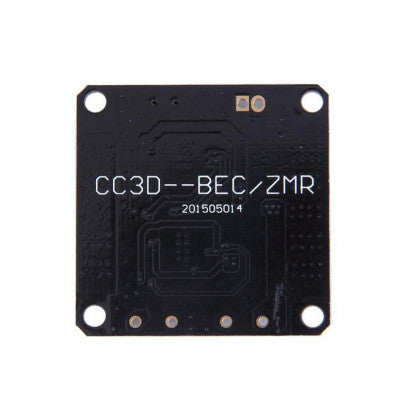

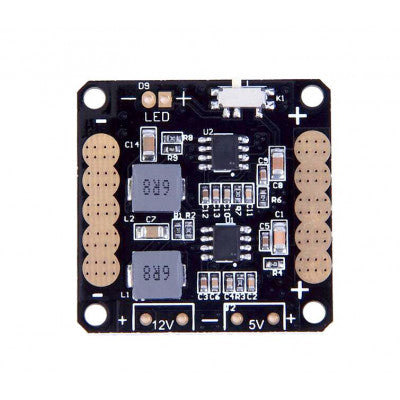

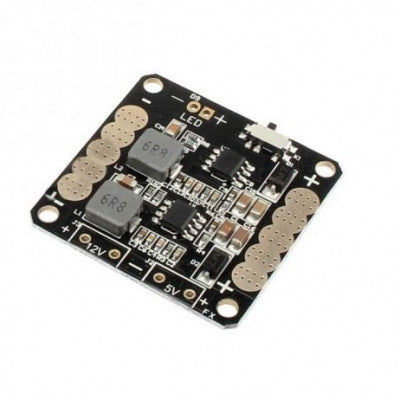

CC3D V2 ZMR Power Distribution Board with Dual BEC LC Filter & LED Switch
Latest version of the popular CC3D power distribution board with integrated BECs
- Model: CC3D V2
- BEC output: 5V/12V 3A
- Input Voltage: 2-6S (max. 3A)
- Length (mm): 36
- Width (mm): 36
- Mounting Distance (mm): 30.5
- Weight (gm): 9
Features:
- Slim design, lightweight, and easy to use
- Latest UBEC, LC Filter
- Integrated filter circuit boards for stability
- Compatible with CC3D/Naze32/F3 flight controller
This CC3D V2 ZMR Power Distribution Board is the latest version of the popular CC3D power distribution board with integrated 5V and 12V BECs. The BECs are now more reliable due to surface-mount-technology integration. The 5V BEC is ideal for flight controllers or RC receivers, while the 12V output can power FPV components or lighting. Both BECs support 2-6S LiPo and can output up to 3A continuous. The board also features a switchable unregulated output for LEDs to save power when not needed.
The board is a standard 36mm size, allowing clean stacking with various flight controllers like CC3D, Naze, and more. It is suitable for Naze32, CC3D, SP F3, APM, etc., flight controllers with a 36 * 36 hole distance. It comes with OSD function, supporting KV team, MWOSD firmware, and includes FTDI. The board also features TX RX Dual-way BEC, DC-DC synchronous rectifier 5V voltage regulation (3A), and comes with an LC filter.
Package Includes: 1 x CC3D V2 ZMR Power Distribution Board with Dual BEC LC Filter & LED Switch
* Images are for illustration only; actual product may vary.
