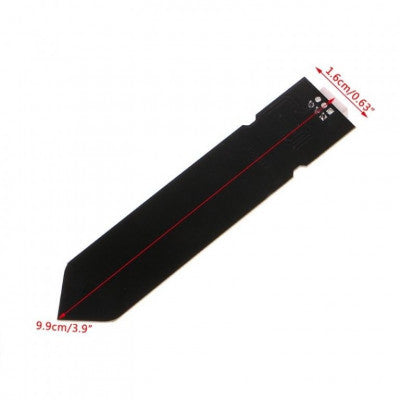

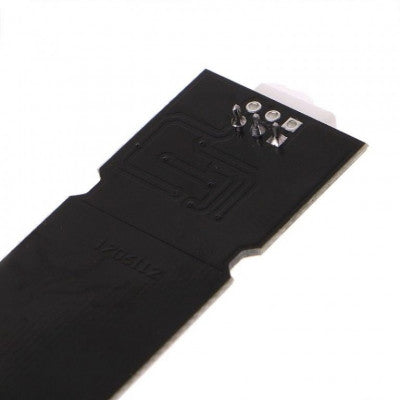

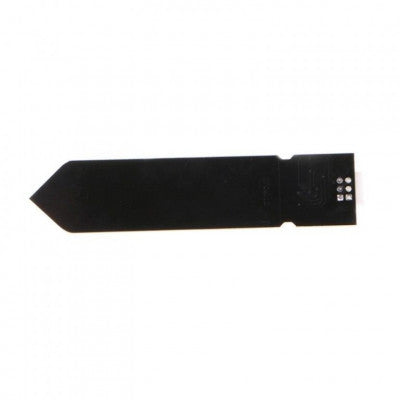

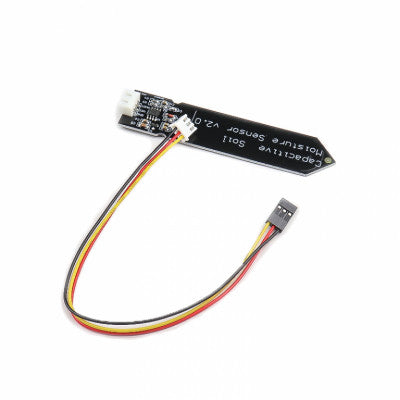

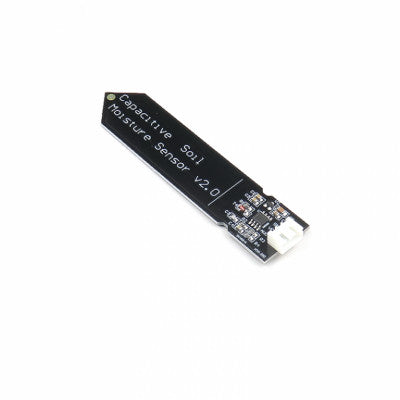

Capacitive Soil Moisture Sensor V2.0
A durable sensor for real-time soil moisture data
- Operating Voltage: 3.3 ~ 5.5 VDC
- Output Voltage: 0 ~ 3.0VDC
- Operating Current: 5mA
- Interface: PH2.54-3P
- Dimensions: 98 x 23 x 4 mm (LxWxH)
- Weight: 15 gm
Top Features:
- Analog output
- Supports 3-Pin Gravity Sensor interface
This capacitive soil moisture sensor V2.0 measures soil moisture levels using capacitive sensing, providing more accurate results compared to resistive sensors. Made of corrosion-resistant material for a long service life. Operating voltage range of 3.3 ~ 5.5V, suitable for low-voltage MCUs. Compatible with the 3-pin Gravity interface and can be connected to the Gravity I/O expansion shield for easy integration.
For Raspberry Pi compatibility, an ADC converter is required. Ideal for monitoring soil moisture levels in garden plants, moisture detection, and intelligent agriculture applications.
Package Includes: 1 x Capacitive Soil Moisture Sensor V2.0
* Images are for illustration only; actual product may vary.
